400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine

PCB Separator
January 09, 2026
Category Connection: PCB Separator Machine
Chat Now Contact Us
Brief: This video provides a case-style overview of the 330mm Pneumatic PCB Separator Machine, showing how this guillotine-style cutter safely and precisely separates individual PCBs from panels. You'll see a demonstration of its semi-automatic, compressed air-driven operation, which uses dual horizontal knives to achieve clean cuts without damaging components located as close as 0.5mm from the score line.
Related Product Features:
  • Pneumatic and electric hybrid design with double straight knife cutting for precision SMD and aluminum circuit boards.
  • Suitable for all PCB thicknesses with a cutting stroke under 2mm, ensuring operational safety.
  • Reduces internal cutting stress below 180μST to prevent tin cracking and protect precision parts.
  • Capable of cutting V-groove edges with a part width of 0.3mm and height of 50mm.
  • Blades are re-sharpenable, extending tool life and maintaining cutting performance.
  • Maintains cutting stress below 500 μE for reliable, damage-free PCB separation.
  • Compatible with PCB materials including FR1, FR4, CEM1, CEM3, and MCPCB.
  • Operates on 0.4-0.7MPa air pressure and 110V/220V power supply for versatile use.
FAQs:
  • What types of PCB materials can this pneumatic separator machine handle?
    The machine is compatible with a range of PCB materials including FR1, FR4, CEM1, CEM3, and MCPCB, making it versatile for various electronic manufacturing applications.
  • How close can components be to the score line without risk of damage during separation?
    The machine safely separates PCBs without damaging components located as close as 0.5mm from the score line, thanks to its precise dual horizontal knife cutting mechanism.
  • What are the primary applications for this guillotine-style PCB cutter?
    It's widely used in consumer electronics, automotive electronics, LED lighting boards, home appliances, medical electronics, and industrial controls for depaneling PCBs with high precision and minimal stress.
  • What is the maximum cutting length and thickness capacity of this machine?
    This model offers a maximum cutting length of 330mm and can handle PCB thicknesses ranging from 0.3mm to 3.5mm, suitable for various board sizes and applications.
Related Videos
Multi-function PCB Depaneling Machine PCB Separator with Dual Spindles 01:41

Multi-function PCB Depaneling Machine PCB Separator with Dual Spindles
PCB Separator
January 13, 2026
SMTD3 LED PCB Separator, 2.4M Aluminum LED Strip Cutting Machine 00:19

SMTD3 LED PCB Separator, 2.4M Aluminum LED Strip Cutting Machine
PCB Separator
January 09, 2026
FPC Punching Machine Flex PCB Punching 00:15

FPC Punching Machine Flex PCB Punching
PCB Separator
January 09, 2026

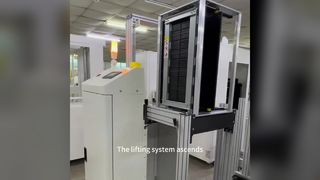

SMT Production Line PCB Unloader 00:55

SMT Production Line PCB Unloader
Other Videos
January 15, 2026
XY movable hot bar soldering machine for high productivity 01:59

XY movable hot bar soldering machine for high productivity
Hot Bar Soldering Machine
January 13, 2026

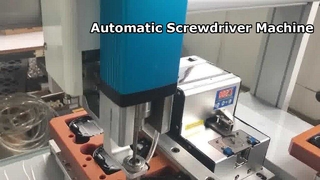

Desktop Screw Tightening Machine 4 Axis With 8000 Screws Pocket 02:25

Desktop Screw Tightening Machine 4 Axis With 8000 Screws Pocket
Other Videos
January 09, 2026
Dual table SMT glue dispenser machine with PC and CCD system 01:27

Dual table SMT glue dispenser machine with PC and CCD system
SMT Glue Dispensing Machine
January 09, 2026
High Speed Automatic Glue Dispenser with Conveyor Belt and PC Controlled 00:09

High Speed Automatic Glue Dispenser with Conveyor Belt and PC Controlled
SMT Glue Dispensing Machine
January 09, 2026

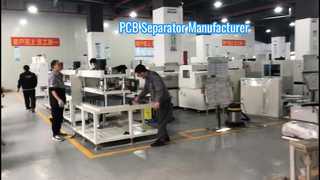

Company workshop 00:29
