PCB Handling Machine PCB Loader

PCB Handling Machine
January 27, 2026
Category Connection: PCB Handling Machine
Chat Now Contact Us
Brief: This short presentation tells the story behind the design and its intended use cases. Watch as we demonstrate the SMT Production Line Automatic PCB Loader Machine in action, showing how it seamlessly integrates with PCB magazine racks for efficient, automated feeding. You'll see the machine's robust operation, learn about its fault monitoring system, and understand how its pressure-regulated pushers protect your PCBs from damage during the loading process.
Related Product Features:
  • Features a solid and stable design for reliable operation in demanding SMT production environments.
  • Utilizes a stable and reliable integrated control system for consistent performance.
  • Offers intuitive operation via light touch LED membrane switch or touch screen control.
  • Includes top and bottom pneumatic clamps to securely hold the magazine rack in place.
  • Pressure-regulated pushers prevent damage to PCBs during the loading process.
  • Provides continuous machine fault monitoring to ensure operational integrity.
  • SMEMA compatible for seamless integration with existing SMT production line equipment.
  • Supports multiple PCB sizes across different models to suit various production needs.
FAQs:
  • What is the primary function of the SMT Production Line Automatic PCB Loader Machine?
    This machine is designed for automatic PCB feeding in SMT production lines, working in conjunction with PCB magazine racks to streamline the loading process.
  • How does the machine prevent damage to the PCBs during loading?
    It features pressure-regulated pushers that are calibrated to apply the correct force, effectively preventing damage to the printed circuit boards during the feeding operation.
  • Is this PCB loader compatible with existing SMT equipment?
    Yes, the machine is SMEMA compatible, ensuring it can be seamlessly integrated into standard Surface Mount Equipment Manufacturer Association compliant production lines.
  • What are the available control options for this automatic PCB loader?
    The machine can be operated using either a light touch LED membrane switch or a more advanced touch screen control interface, providing flexibility for different user preferences.
Related Videos
Automatic Buffer 00:37

Automatic Buffer
PCB Handling Machine
January 27, 2026
PCB Handling Machine PCB Flipper 00:21

PCB Handling Machine PCB Flipper
PCB Handling Machine
January 27, 2026

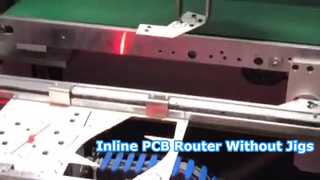

Full Automatic Inline PCB Router without Jigs 01:00

Full Automatic Inline PCB Router without Jigs
PCB Separator
January 27, 2026

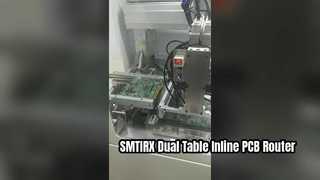

SMTIRX Dual Table Inline PCB Router 00:48

SMTIRX Dual Table Inline PCB Router
PCB Separator
January 27, 2026
SMT Production Line PCB Unloader 00:55

SMT Production Line PCB Unloader
Other Videos
January 15, 2026

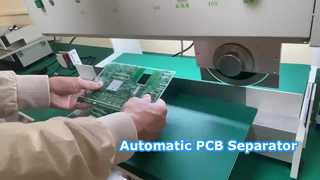

Automatic PCB Separator 00:30
