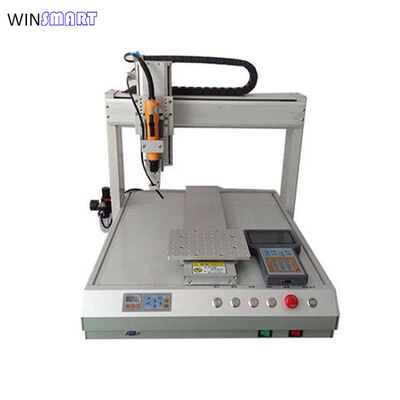

Suction Type Single Table Single Head Screw Locking Machine
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTSD111 |
| Minimum Order Quantity | 1 unit |
| Price | USD4000-20000/unit |
| Packaging Details | plywood case |
| Delivery Time | 20 working days |
| Payment Terms | T/T |
| Supply Ability | 300 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Stroke | 400x400x100mm | Controlsystem | PLC With Touchscreen Interface |
|---|---|---|---|
| Speed Range | 0-500 Rpm | Material | Aluminum Alloy Frame |
| Screw Head | Any Universal Type | Productname | Robotic Screwdriver Machine |
| Power | 110V Or 220V | Color | Silver |
| Screw Size | M1.2-M5 | Automationlevel | Semi-auto |
| Locking Speed | 1.2-1.8 Seconds Per Screw | Programming Method | Teach Pendant |
| Weight | 90 Kg | Heads | 1 |
| Torquerange | 0.1 - 20 Nm | Application | Electronics Assembly, Automotive, Appliances |
| Condition | 100% New | Axis | 3 |
| Type | Manual |
Product Description
Suction Type Single Table Single Head Robotic Screwdriver Machine
Single Table Single Head Robotic Screwdriver Machine Description:
Automatic screw locking machine is suitable for automobile, machine manufacturing, wireless communication, industrial electrical and other industries
Single Table Single Head Robotic Screwdriver Machine Features:
- Single tables, single screwdriver head, single screw feeder for high productivity.
- Mainly use the screw automatic feeding system, X Y Z mobile platform, control system and locking system.
- Strong usage, replace fixtures for different products, the device program stored separately, the corresponding program can be used at any time.
- Good stability, no mis-feeding issue, even if the bad screws cause mis-feeding, non-professionals can operate it in a short time
- The key parts use high-quality hardware materials through special treatment, the imported original electronic parts to ensure that equipment zero failure.
- Vacuum type screw feeder for stable running.
Dual Table Single Head Robotic Screwdriver Machine Specifications:
|
Model |
SMTSD111 |
|
Working area |
400*400*100mm |
|
Loading |
5kg |
|
Speed |
1-600/s(X, Y); 1-300/s(Y) |
|
Repeatability |
±0.01mm/Axis |
|
Program Mode |
Teaching Box |
|
Control Mode |
Moving control card |
|
Motor |
closed-loop research and control motor |
|
Power |
AC110V/220V300W(Internal switching) |
|
Working Temp. |
5-40℃ |
|
Feeder |
HOSO(optional) |
|
Suitable Screws |
M1.0-M5.0 |
|
Screwdriver |
Local brand |
|
Torque |
0.03-15kgf.cm |
|
Locking efficiency |
Min0.8-1.2s |
|
Working station |
1 |
|
Screwdriver |
1 |
|
Transfer method |
Synchronous belt / screw + precision linear guide |
|
Fixture |
Custom made according to customers’ application |
Single Table Single Head Robotic Screwdriver Machine Suitable Screws:
It is suitable for cross screw, torx, inner hexagon screw, outer hexagon screw, slotted screw, triangular screw, etc.
Single Table Single Head Robotic Screwdriver Machine Applications:
It is suitable for home appliances, automotive electronics, instrumentation, toys, power supply, mobile phones, LED lighting industry, Tablet PC, computer keyboard etc.
