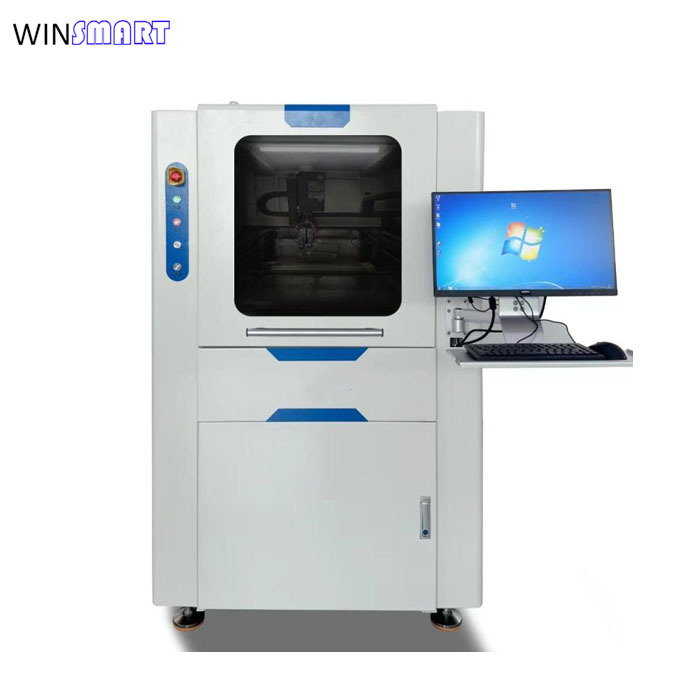

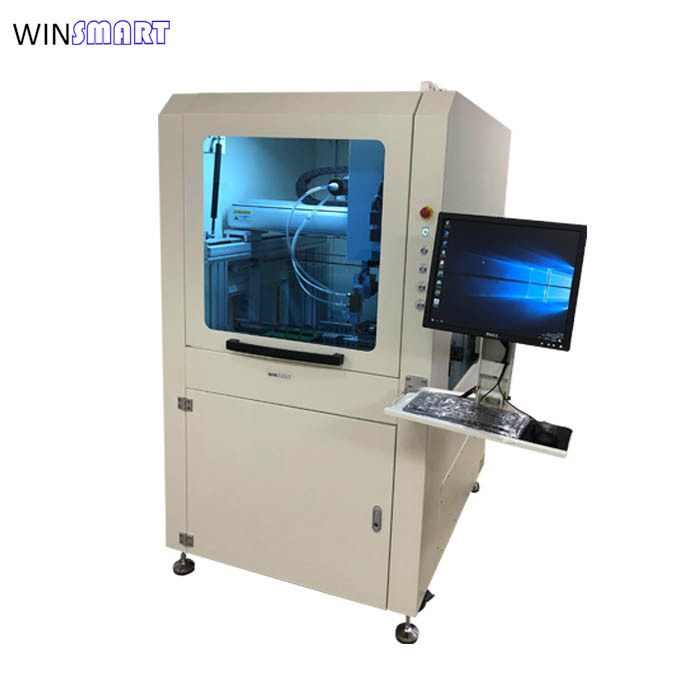

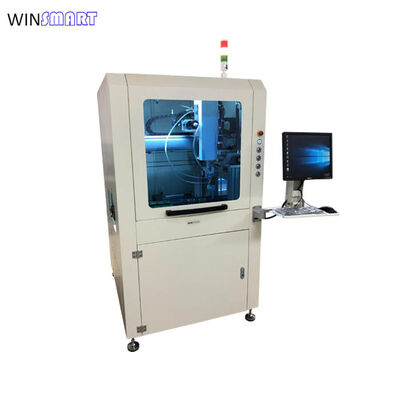

Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTID350 |
| Minimum Order Quantity | 1 Unit |
| Price | USD15000-30000/unit |
| Packaging Details | plywood case |
| Delivery Time | 14-20 working days |
| Payment Terms | T/T |
| Supply Ability | 300 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Safetyfeatures | Emergency Stop Button, Overload Protection | Application | Surface Mount Technology (SMT) Glue Dispensing |
|---|---|---|---|
| Operatingspeed | Up To 1000 Points Per Minute | Workingtemperaturerange | 0°C To 45°C |
| Powersupply | AC 220V, 50/60Hz | Type | Automatic Glue Dispensing Machine |
| Materialcompatibility | Epoxy, Silicone, UV Glue, Conductive Adhesives | Dispensingaccuracy | ±0.01 Mm |
| Repeatability | ±0.005 Mm | Productname | SMT Glue Dispensing Machine |
| Dispensingmethod | Pneumatic/Servo Motor Controlled |
Product Description
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Inline SMT Glue Dispensing Machine Introduction:
An Inline SMT (Surface Mount Technology) Glue Dispensing Machine is an automated system commonly used in electronics manufacturing for dispensing adhesive (typically epoxy) precisely onto PCBs (Printed Circuit Boards) before component placement. This process ensures components are securely held in place during reflow soldering, especially on wave solder lines or when dealing with large or heavy components.
Inline SMT Glue Dispensing Machine Applicable Glue:
Thermal conductive adhesive, SMT bottom filling, component packaging, solder paste, red glue, black glue, semiconductor packaging, crystal cell fixation, etc
Inline SMT Glue Dispensing Machine Features:
- PC control, Windows operating system, fault sound and light alarm, and menu display CCD visual positioning system.
- Adopting servo motor and screw drive.
- Can be equipped with: jet valve or other valves.
- Automatic constant temperature system of the valve body ensures consistent fluidity.
- Optional laser height detection system, which can automatically calibrate the Z-axis height after workpiece deformation.
- Optional workpiece heating system to enhance the fluidity of the coating during bottom filling.
- Optional precision weighing system, intelligent control and detection of dispensing amount, ensuring consistency of dispensing.
Inline SMT Glue Dispensing Machine Specifications:
| Model | SMTID350 |
|---|---|
| Working Stroke | 400(X)x400(Y)x30(Z)mm |
| Moving Speed | 1000 mm/sec |
| Feeding Speed | 2-5m/min |
| Control Mode | Industrial computer + motion control card |
| Program Mode | Can import SMT machine files or online visual programming |
| Spindle drive | Servo motor + ball screw |
| Air Pressure | ≥0.65MPa |
| Nozzle cleaning device | Vacuum cleaning (optional) |
| Alarm System | Menu+sound and light alarm |
| Conveyor track | High temperature belt & 1-stage shutdown mode |
| Valve quantity | 1 |
| Valve Type | Piezoelectric injection valve |
| Repetitive accuracy | ±0.01mm |
| Material capacity | 30CC |
| Material detection | Automatic |
| communication interface | SMEMA |
| Transmission Direction | L-->R or R-->L |
| Power | 220V, 50/60Hz, 2.5KW |
| Dimension (W*D*H) | 790(L)x1600(W)x1600(H)mm |
| Weight | 700kgs |
Inline SMT Glue Dispensing Machine Applications:
- Consumer Electronics – Smartphones, tablets, wearables.
- Automotive Electronics – ECUs, sensors, infotainment systems.
- Medical Devices – Compact and critical electronics.
- Aerospace & Defense – High-reliability electronics.
- Industrial Control Systems – PLCs, HMIs, and automation controls.
TYPICAL FLUID APPLICATION FOR SMARTPHONES
