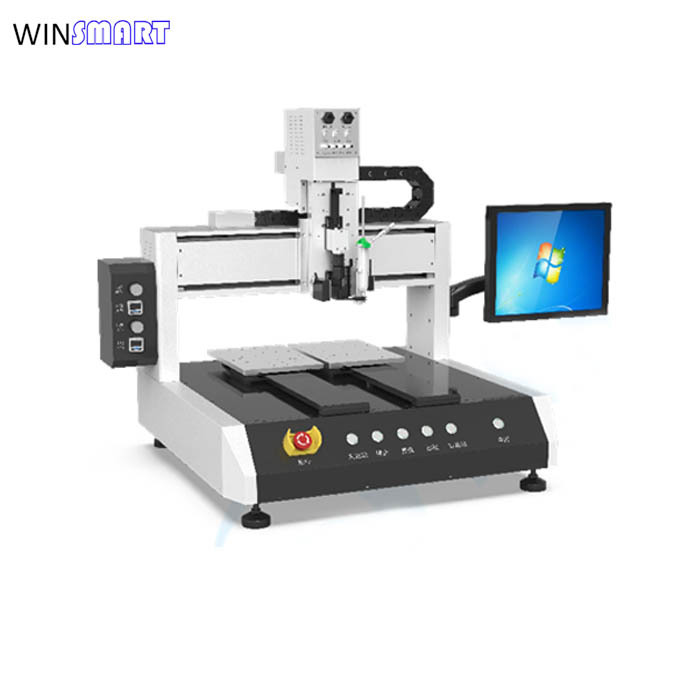

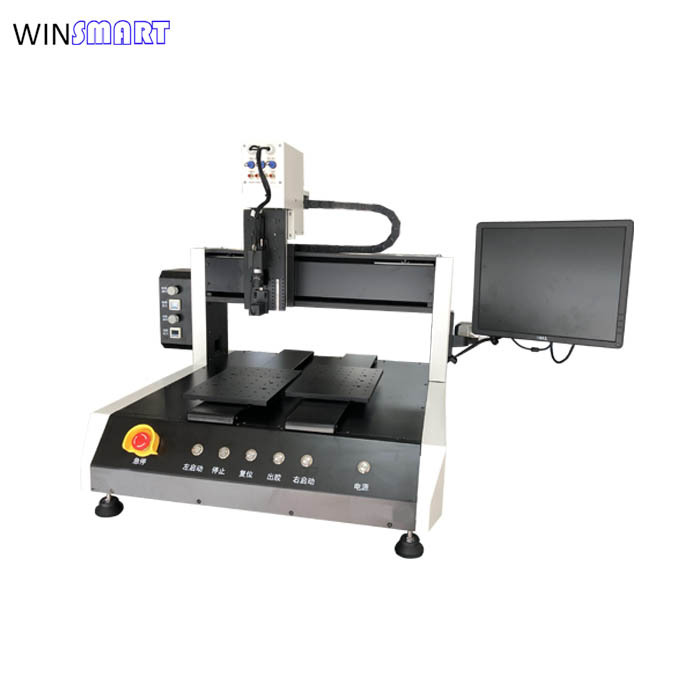

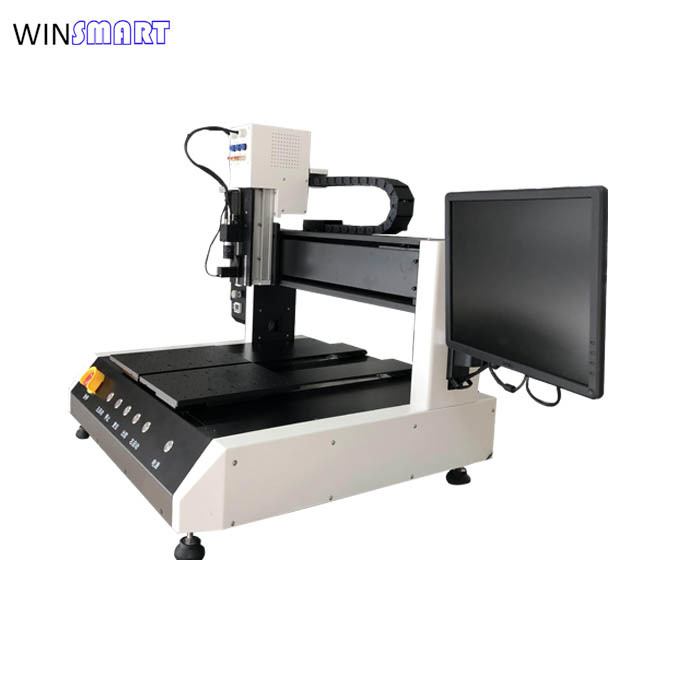

Dual Table Desktop Precise SMT Glue Dispenser Machine
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTDR6 |
| Minimum Order Quantity | 1 Unit |
| Price | USD15000-30000/unit |
| Packaging Details | plywood case |
| Delivery Time | 14-20 working days |
| Payment Terms | T/T |
| Supply Ability | 300 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Safetyfeatures | Emergency Stop Button, Overload Protection | Application | Surface Mount Technology (SMT) Glue Dispensing |
|---|---|---|---|
| Operatingspeed | Up To 1000 Points Per Minute | Workingtemperaturerange | 0°C To 45°C |
| Powersupply | AC 220V, 50/60Hz | Type | Automatic Glue Dispensing Machine |
| Materialcompatibility | Epoxy, Silicone, UV Glue, Conductive Adhesives | Dispensingaccuracy | ±0.01 Mm |
| Repeatability | ±0.005 Mm | Productname | SMT Glue Dispensing Machine |
| Controlsystem | PC Control | Weight | 150 Kg |
| Maxdispensingspeed | 100 Mm/s | Glueviscosityrange | 10-5000 Cps |
| Operatingtemperature | 0-45°C | Nozzlediameter | 0.1 Mm - 2.0 Mm |
| Machinetype | Semi-auto |
Product Description
Dual Table Desktop Precise SMT Glue Dispenser Machine
Desktop SMT Glue Dispenser Machine Introduction:
A Desktop Precise SMT Glue Dispenser Machine is a compact, benchtop system designed to apply adhesive materials such as epoxy, UV glue, or solder paste with high precision onto printed circuit boards (PCBs) or other small electronic assemblies. Unlike inline systems used in high-volume production lines, desktop machines are ideally suited for prototyping, small-batch production, R&D, and repair work.
These machines use XYZ gantry systems, precision stepper motors, and micro-dispensing valves or syringes to control the amount and placement of glue for SMT components.
Desktop SMT Glue Dispenser Machine Applicable Glue:
Thermal conductive adhesive, SMT bottom filling, component packaging, solder paste, red glue, black glue, semiconductor packaging, crystal cell fixation, etc
Desktop SMT Glue Dispenser Machine Features:
- PC control, Windows operating system, fault sound and light alarm, and menu display.
- CCD visual positioning system.
- Adopting servo motor and screw drive.
- Capable of carrying: pneumatic injection valve, piezoelectric valve, screw valve, AB rubber valve, etc.
- Optional laser height detection system, which can automatically calibrate the Z-axis height after workpiece deformation.
- Optional workpiece heating system to enhance the fluidity of the coating during bottom filling.
- Optional precision weighing system, intelligent control and detection of dispensing amount, ensuring consistency of dispensing.
Desktop SMT Glue Dispenser Machine Specifications:
| Model | SMTDR6 |
| Working Stroke | 200x300mm, dual tables |
| Moving Speed | Max 800mm/s |
| Driven Mode | servo + screw rod |
| Program Mode | Visual CCD System |
| Repeatable Precision | ±0.02mm |
| Max Load(Y/Z axis) | 10/5kgs |
| Working Humidity | 20-90% |
| Number of axis | 4 |
| PC System | Windows 10 |
| Dimension (W*D*H) | 950x850x850mm |
| Weight | 150kgs |
Desktop SMT Glue Dispenser Machine Applications:
| Application | Details |
| PCB Prototyping | Apply adhesive to secure components before reflow or wave soldering. |
| Wearables & IoT Devices | Perfect for small PCBs used in compact consumer electronics. |
| Component Repair & Rework | Used to reapply adhesive in repair scenarios. |
| Automotive Electronics | For custom automotive electronics or sensor assembly. |
| Medical Device Assembly | Precise glue application for miniaturized, high-reliability medical PCBs. |
| R&D Labs | Used in electronics research labs to test new component arrangements. |
| Low-Volume SMT Assembly | Ideal for startups producing small batches of electronics. |
| Conformal Coating Pre-Application |
Spot-gluing components before coating processes. |
