Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTID5X |
| Minimum Order Quantity | 1 Unit |
| Price | USD15000-50000/unit |
| Packaging Details | plywood case |
| Delivery Time | 14-20 working days |
| Payment Terms | T/T |
| Supply Ability | 300 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Safetyfeatures | Emergency Stop Button, Overload Protection | Application | Surface Mount Technology (SMT) Glue Dispensing |
|---|---|---|---|
| Operatingspeed | Up To 1000 Points Per Minute | Workingtemperaturerange | 0°C To 45°C |
| Powersupply | AC 220V, 50/60Hz | Type | Automatic Glue Dispensing Machine |
| Materialcompatibility | Epoxy, Silicone, UV Glue, Conductive Adhesives | Dispensingaccuracy | ±0.01 Mm |
| Repeatability | ±0.005 Mm | Productname | SMT Glue Dispensing Machine |
| Dispensingmethod | Pneumatic/Servo Motor Controlled | Operating Temperature | 0°C To 45°C |
| Power Supply | AC 220V, 50/60Hz | Glue Types Supported | Solder Paste, Epoxy, UV Glue, Silicone |
| Dispensing Method | Pneumatic/Servo Motor Driven | Additional Features | Anti-drip Function, Automatic Cleaning, Multi-axis Control |
| Dispensing Speed | Adjustable, Up To 100 Mm/s | Control System | PC |
| Dispensing Accuracy | ±0.01 Mm |
Product Description

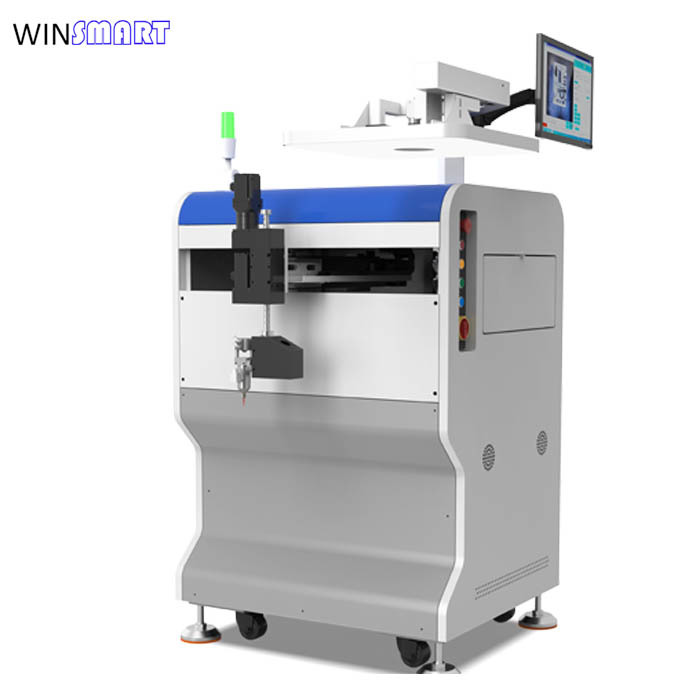

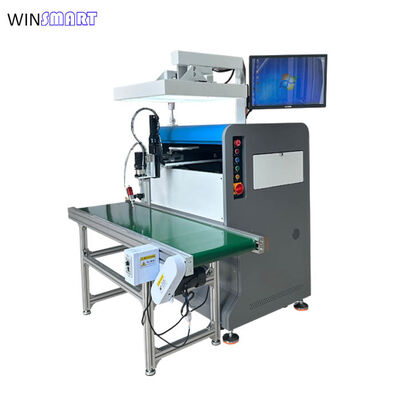

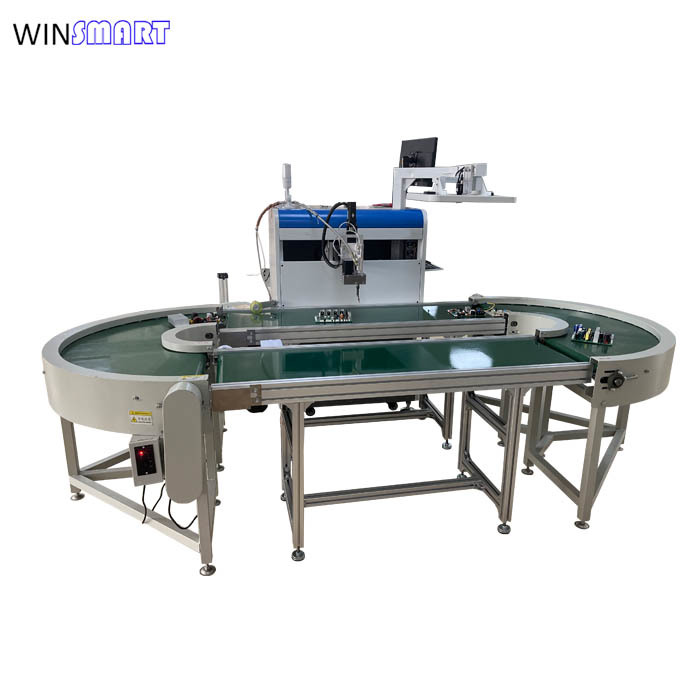

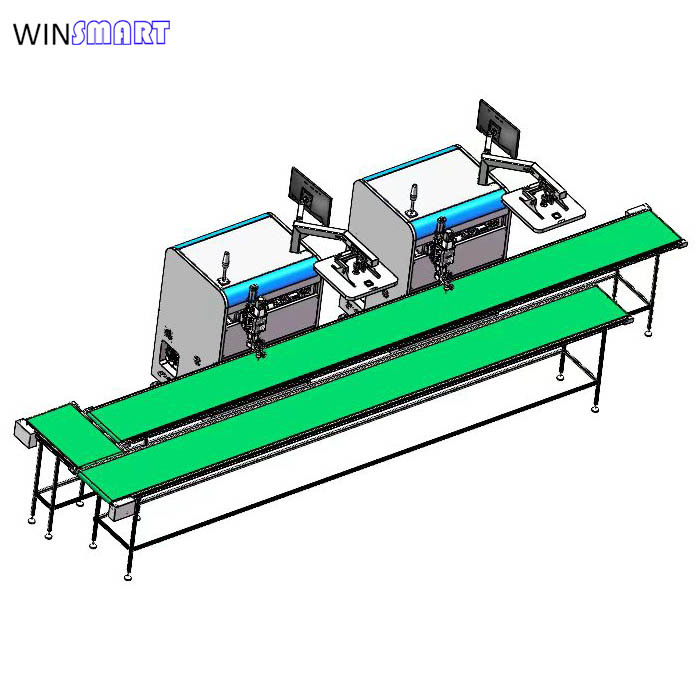

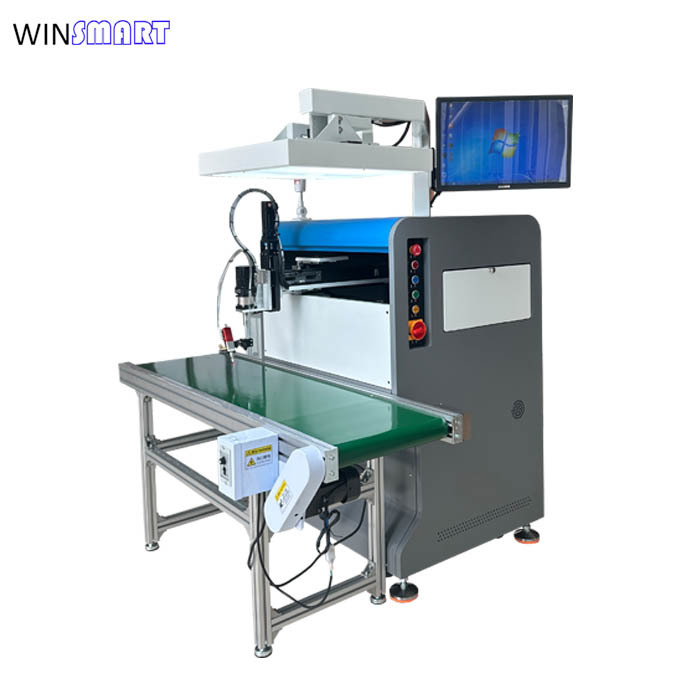

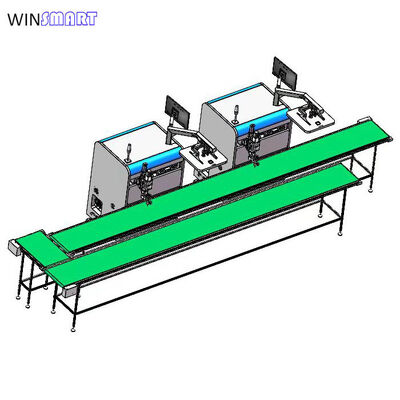

Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Dispensing Machine Introduction:
A Four-Axis Visual High-Speed Dispensing Machine is an advanced automation system designed for precise, high-speed application of adhesives, sealants, or other fluids in electronic and industrial assembly lines. The "four-axis" refers to X, Y, Z, and rotational R-axismotion control, enabling the nozzle to dispense at complex angles and orientations.
Equipped with a vision system, it automatically recognizes positioning marks (fiducials) to adjust dispensing paths in real time, ensuring high precision and repeatable accuracy — even on intricate or irregular surfaces.
This type of machine is commonly used in high-volume manufacturing environments for SMT, semiconductor packaging, LED modules, and mobile device assembly.
Four-axis Visual High Speed Dispensing Machine Applicable Glue:
Inverters, energy storage, photovoltaics, power supplies, automotive electronics, electronic cigarettes, 3C, semiconductors, etc.
Four-axis Visual High Speed Dispensing Machine Features:
- CCD visual positioning, without any fixtures.
- CCD automatically recognizes templates and generates dispensing trajectories.
- Combines dispensing and handling processes for multiple production lines.
- Compatible with various dispensing valves and controlling system, easy to operate, easy to learn and use.
Four-axis Visual High Speed Dispensing Machine Specifications:
|
Model |
SMTID5X |
|
Automatic Glue Dispenser |
Yes |
|
Dispensing Head |
360°Rotatable (Optional) |
|
Glue Capacity |
2600ml |
|
Dispensing Tilt Angle |
180°(Optional) |
|
Glue Detection |
Auto(Optional) |
|
Programming |
Visual CCD |
|
Axes |
4 |
|
Working Area |
400mm*400*100mm |
|
Max Moving Speed |
1000mm/s |
|
Driven |
Servo motor+ball screw |
|
Air Pressure |
≥0.65Mpa |
|
Power Rate |
1.5KW |
|
Dispensing Valve Quantity |
1 |
|
Repeatability Accuracy |
±0.02mm |
|
Control Mode |
IPC + control Card |
|
Y Axis |
200mm |
|
Machine Dimension |
1200(L)x1400(W)x1650(H)mm |
|
Machine Weight |
300kgs |
Four-axis Visual High Speed Dispensing Machine Applications:
| Application | Description |
| Mobile Phone Assembly | Used for sealing, gluing, or underfill in smartphone components like camera modules and screens. |
| LED Packaging | Applies phosphor, silicones, or adhesives precisely on LED chips and modules. |
| Display Panel Bonding | Dispensing UV glue or bonding agents in TVs, monitors, and touch panels. |
| Semiconductor Packaging | Underfill, dam & fill, and encapsulation processes for ICs and MEMS devices. |
| Automotive Electronics | High-reliability adhesive application for ECUs, sensors, and control modules. |
| Battery & Energy Products | Applies thermal interface materials (TIMs), sealants, or adhesives in battery cells. |
| PCB Assembly (SMT) | Applies glue for component fixation, especially on double-sided boards. |
| Medical Devices |
|
