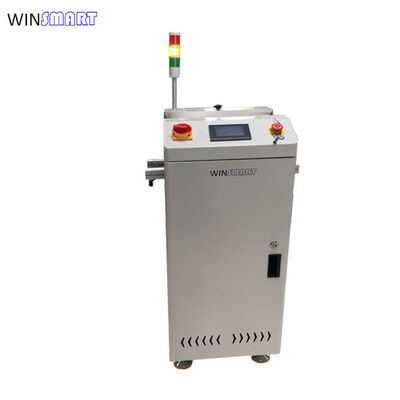

SMT Production Line Automatic PCB Flipper Machine to Turn PCB 180 Degree
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTPI-350 |
| Minimum Order Quantity | 1 unit |
| Price | USD1000-10000/unit |
| Packaging Details | plywood case |
| Delivery Time | 14-20 working days |
| Payment Terms | T/T |
| Supply Ability | 1000 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Setting Range | Room Temperature – 200°C | Maximum Load | PCB/1.5kg |
|---|---|---|---|
| Precision | ±0.1 Mm Positioning Accuracy | Air Supply | 5 Kg F/cm² |
| Automationlevel | Fully Automated With Optional Manual Override | Board Thickness | Min. 0.6mm |
| Condition | New |
Product Description
SMT Production Line Automatic PCB Flipper Machine
Automatic PCB Flipper Machine Description:
The automatic pcb flipper machine is used to turn over the PCB for double-sided use in SMT and AI production lines, and then send it to the next machine.
Automatic PCB Flipper Machine Features:
- Solid and stable design
- Stable and reliable integrated control system
- HMI control panel, easier operation
- Buffering slow down design more stable and precision
- The top safety cover can be opened to facilitate the maintenance of machine
- Smooth and parallel width adjustment
- Machine always fault monitoring
- SMEMA compatible
Automatic PCB Flipper Machine Specifications:
| Model No | SMTPI-350 |
|---|---|
| PCB Size(mm) | (50x50)-(480x300) |
| Machine Size(mm) | 600x800x1250 |
| Weight(kg) | 130 |
| PCB Thickness | 0.6-3mm |
| Cycle Time | Approx 10 seconds |
Automatic PCB Flipper Machine Technical Parameters:
| Function | Cycle Time | Air Pressure | Power Supply |
|---|---|---|---|
| It is used to invert PCB for next process | Approx 15 seconds | 4-6 Bar | 100-230V, 1PH |
| Transport Height | Transportation Direction | PCB Thickness | Air Consumption |
| 900±20mm(or customized) | From L to R or From R to L | Min 0.6mm | Max 15L/min |
