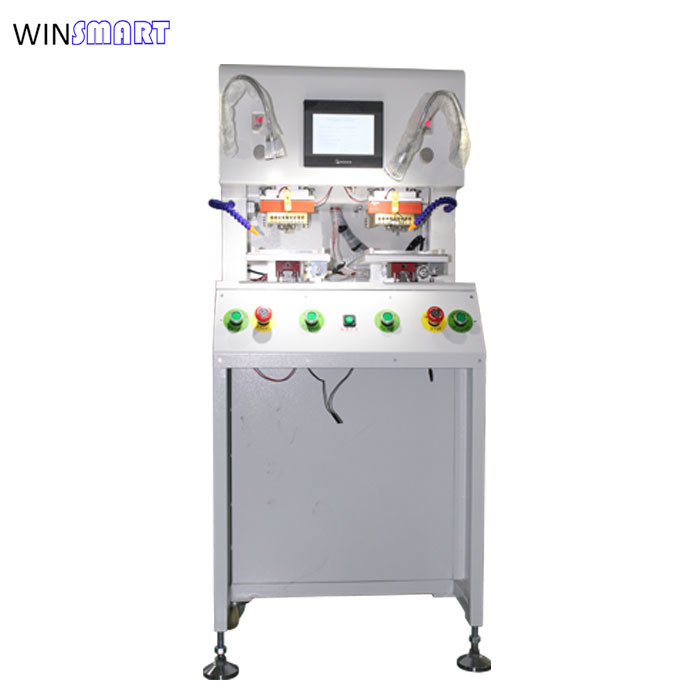

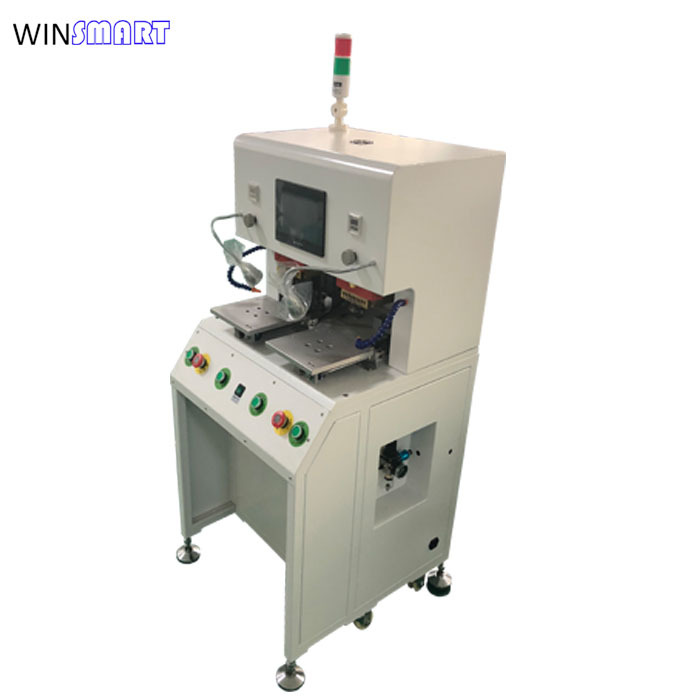

Dual Tables +3°C Tolerance Hot Bar Soldering Machine with Max 80mm Thermode
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTS22 |
| Minimum Order Quantity | 1 Unit |
| Price | USD6000-20000/unit |
| Packaging Details | plywood case |
| Delivery Time | 5-10 working days |
| Payment Terms | T/T |
| Supply Ability | 500 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Accuracy | ± 3 ℃ | Condition | New Original |
|---|---|---|---|
| Usage | Pulse Heat | Work Air Pressure | 0.5-0.7MPA |
| Air Pressure | 0.4-0.75MPa | Power | 110/220V |
| Power Consumption | 500W | Application | FFC/FPC To PCB, Wires To PCB |
| Lcd | Set Program | Weight | 163 Kg |
| Delievery Time | Free For One Year | Warning Light | Ensure Operate Correctly |
| Temperature | 0~450℃ | Temperaturecontrol | Digital PID Controller |
| Testing Report | Provide | Tolerance Of Temp | +3°C |
| Visual Positioning System | ±0.003mm | Pin Distance Range | ＞0.2mm |
| Fixture | 1 Set | Thermode | 1 |
| Working Voltage | 110V Or 220V, AC | Warranty | 1year |
| Working Pressure | 0.4~0.75mpa | Time Of Pressing | 0-99s |
| Solderingtime | 0.1s - 9.9s | Soldering | FPC To PCB, FFC To PCB, Wires To PCB |
| Coolingmethod | Air Cooling |
Product Description
Dual Tables +3°C Tolerance Hot Bar Soldering Machine with Max 80mm Thermode
Automatic Hot Bar Soldering Machine Instroduction:
Hot Bar Reflow Soldering is a selective soldering process where two pre-fluxed, solder coated parts are heated using a heating element (called a thermode or a Hot Bar) to a sufficient temperature to melt the solder. The parts are then cooled below the solidification temperature to form a permanent electro-mechanical bond.
Automatic Hot Bar Soldering Machine Features:
- According to different products, optional temperature for your choice.
- Unique material thermode head, ensure the average pressure
- Has vacuum function, easier for adjustment and positioning.
- NC temperature, clear and high precision
- With digital pressure gauge, pressure range can be preset.
- Microcomputer control, high accuracy and stable.
- Programmable curve Including pre-heating and reflow soldering temperature.
- Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
- Precise PID control, phase angle replace pulse drive.
- Less Libration, less noise, avoiding voltage fluctuate
- Rotable dual fixtures with high working efficiency
- Touch screen input data, simplify the operation.
- Real-time display temperature curve and temperature data
Automatic Hot Bar Soldering Machine Specifications:
| Model | SMTS22 |
| Machine size | 660*620*1260mm |
| Working area | 150x150mm |
| Machine weight | 100Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±3℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | 3-stage |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ, 2000W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start buttons |
| Rotation Platform | Cylinder control, tolerance<0.02mm |
Automatic Hot Bar Soldering Machine Applications:
For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB.
Automatic Hot Bar Soldering Machine Advantages:
- Precise temperature control (typically 150°C – 500°C).
- Adjustable time, pressure, and heat profile.
- Fine alignment system for small-pitch applications.
- Cooling system for controlled solidification.
- Programmable settings for repeatability.
