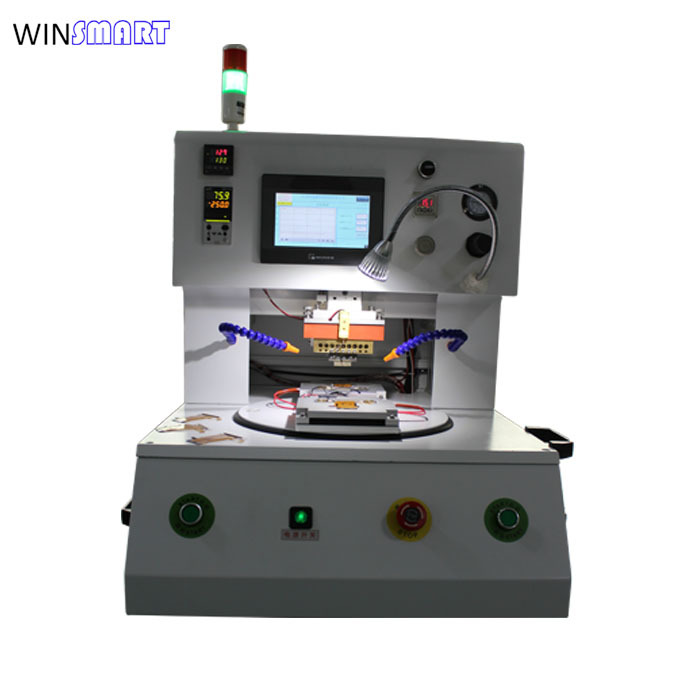

Rotatable 2 Fixtures Hot Bar Soldering Machine with Molybdenum Alloy Thermode
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTS22 |
| Minimum Order Quantity | 1 Unit |
| Price | USD6000-20000/unit |
| Packaging Details | plywood case |
| Delivery Time | 5-10 working days |
| Payment Terms | T/T |
| Supply Ability | 500 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Accuracy | ± 3 ℃ | Condition | New Original |
|---|---|---|---|
| Usage | Pulse Heat | Work Air Pressure | 0.5-0.7MPA |
| Air Pressure | 0.4-0.75MPa | Power | 110/220V |
| Power Consumption | 500W | Application | FFC/FPC To PCB, Wires To PCB |
| Lcd | Set Program | Delievery Time | 14-20 Working Days |
| Warning Light | Ensure Operate Correctly | Temperature | 0~450℃ |
| Temperaturecontrol | Digital PID Controller | Testing Report | Provide |
| Tolerance Of Temp | +3°C | Visual Positioning System | ±0.003mm |
| Pin Distance Range | ＞0.2mm | Fixture | 1 Set |
| Thermode | 1 | Working Voltage | 110V Or 220V, AC |
| Warranty | 1year | Working Pressure | 0.4~0.75mpa |
| Time Of Pressing | 0-99s | Solderingtime | 0.1s - 9.9s |
| Soldering | FPC To PCB, FFC To PCB, Wires To PCB | Coolingmethod | Air Cooling |
Product Description

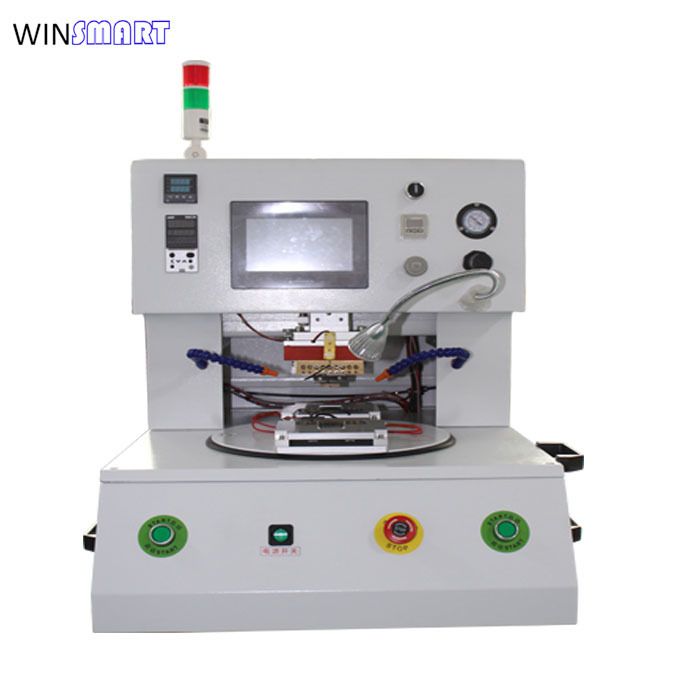

Rotatable 2 Fixtures Hot Bar Soldering Machine with Molybdenum Alloy Thermode
Rotatable Hot Bar Soldering Machine Instroduction:
Hot Bar Reflow Soldering is a selective soldering process where two pre-fluxed, solder coated parts are heated using a heating element (called a thermode or a Hot Bar) to a sufficient temperature to melt the solder. The parts are then cooled below the solidification temperature to form a permanent electro-mechanical bond.
Rotatable Hot Bar Soldering Machine Key Features:
Compact size – perfect for desktop operations.
Precise temperature control (typically 150°C – 500°C).
Adjustable time, pressure, and heat profile.
Fine alignment system for small-pitch applications.
Cooling system for controlled solidification.
Programmable settings for repeatability.
Rotatable Hot Bar Soldering Machine Specifications:
| Model | SMTS12 |
| Machine size | 660×660×720mm |
| Working area | 120x120mm |
| Machine weight | 90Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±3℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | 3-stage |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ, 2000W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start buttons |
| Rotation Platform | Cylinder control, tolerance<0.02mm |
Rotatable Hot Bar Soldering Machine Applications:
For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB.
Rotatable Hot Bar Soldering Machine Working Processing:
1.Component Alignment: The parts to be joined (e.g., FPC to PCB) are aligned under the hot bar.
2. Heat & Pressure Application: The hot bar heats up to a set temperature and presses down with controlled force.
3. Bond Formation: Heat transfers through the component, melting solder or adhesive on contact points.
4. Cooling: The system cools down under pressure to solidify the bond.
