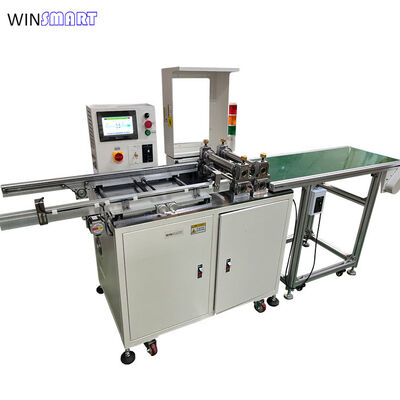

PCB Loader Connectable Multi-blade PCB Separator Machine for 1200mm LED Boards

PCB Loader Connectable Multi-blade PCB Separator Machine for 1200mm LED Boards

Multi-blade PCB Separator Machine Description:

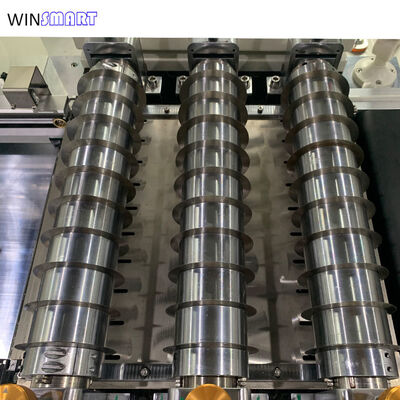

The professional led strip cutting machine is one of this kind of machines, which could improve 10 times productivity. For FR4 boards, it is enough to use upper 2 blades sets and lower 2 blade sets. For MCPCB boards, need to use upper 3 blade sets and lower 3 blade sets. Let us name A, B, C for the 3 blade sets, first blade set A cutting 30% of web, second blade set B cutting 30% of web, ad the last blade set cutting 40% of web to finish the whole cutting. After cutting, PCB edge is clean without burrs, product quality improves a lot. The machine is good helper for the LED manufacturers.

Multi-blade PCB Separator Machine Features:

1.It can cut many boards with multiple sets of knives work at the same time.

2.The knife flywheel is adjustable as a whole from 0 to 5mm

3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm

4.The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life. 5.It is convenient to adjust the cutting speed through rotary knob

6.No limits of the cutting length.

7.Thickness range of PCB: 0.8-3.5mm

8.With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.

9.The machine adopts multiple blade to separate boards with simple operation and high efficiency. the customize one, It can connect the production line to separate the PCB, fitted for batch production.

Multi-blade PCB Separator Machine Specifications:

Multi-blade PCB Separator Machine Applications:

It is widely used in LED industry to improve productivity.
