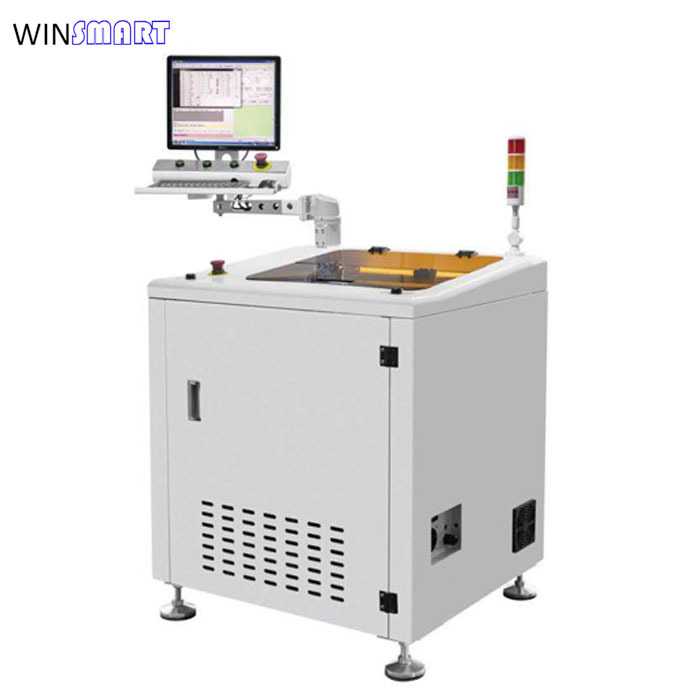

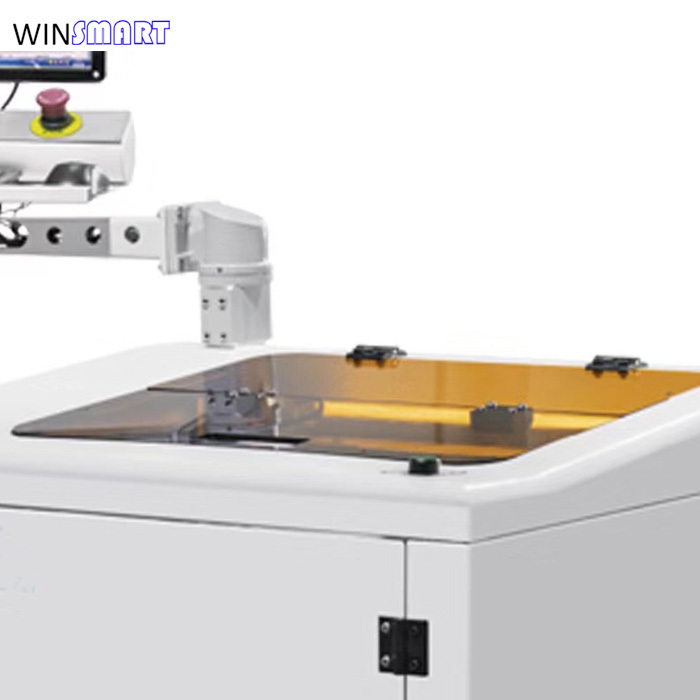

Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTR17 |
| Minimum Order Quantity | 1 Unit |
| Price | USD20000-30000/unit |
| Packaging Details | plywood case |
| Delivery Time | 14-20 working days |
| Payment Terms | T/T |
| Supply Ability | 500 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Change Cutter | Manual | Vacuum | Yes |
|---|---|---|---|
| Spindle Quantity | 1 | Max Pcb | 460x410mm(Single Table) |
| Coolingsystem | Air | Routing Bit | Dia 0.8-3.0mm |
| Separating Speed | 1-100mm/s | Cutting Width | 2-6mm |
| Condition | New | Feeding | Manual |
| Weight | 330 Kg |
Product Description
Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
Single/Dual Table PCB Depaneling Router Introduction:
A PCB router machine is very important for factories and enterprises. It can not only help enterprises stabilize their own development, but also solve the difficulties encountered by customers in the process of board division.
Single/Dual Table PCB Depaneling Router Features:
- Optional single/dual platform
- PC and CCD vision system
- Programming with compensation and dust collection
- Available for max 460mm boards ※ Flexible for different type of products
- Open type platform for LD/ULD and auto upgrade with robot
Single/Dual Table PCB Depaneling Router Specifications:
|
Model Number |
SMTR17 |
|
Machine Size |
850(L) x 750(W) x 1455(H)mm |
|
Voltage |
380V/50Hz, 2.5KW |
|
Max PCB Size |
410x460mm (single table), 260x310mm(dual table) |
|
PCB Thickness |
0.4-6mm |
|
Feeding Mode |
Manual |
|
PCB Positioning |
Customized fixture |
|
Programming |
Vision teaching, inline programming |
|
Cutting Spindle |
SycoTec 60000rpm/min(standard) |
|
Cooling Type |
Self cooling |
|
Dust Collection Mode |
Bottom collection |
|
Cutting Speed |
1-100mm/s |
|
Cutting Accuracy |
|
|
±0.01mm |
|
|
Routing Bit |
0.8-3.0 Diameter, right rotation |
|
Repeat Accuracy |
±0.02mm |
|
Control System |
Industrial PC |
|
Spindle |
Germany SycoTec 4015HY |
|
Motion Control |
4 axis motion control board |
|
Lead screw |
C5 grinding screw lead |
|
Camera |
Germany imaging 40W greay camera |
|
LCD |
17 inch |
Single/Dual Table PCB Depaneling Router Applications:
It is widely used in Medical Electronics, LED Lighting Boards, Automotive Electronics, Consumer Electronics and home household appliances, etc. Taking this automatic PCB depaneling router machine as the overall depaneling production transformation scheme of automotive manufacturing workshop can realize rapid and efficient production in the workshop, greatly reduce the dependence of enterprises on labor force, replace manual breaking with automatic segmentation, and realize double-sided cutting for components with complex structure, greatly improve product quality and improve enterprise production capacity and competitiveness.
Single/Dual Table PCB Depaneling Characteristics:
- Improve product quality and reduce scrap rate.
- It is equipped with high pixel color CCD magnifying glass, auxiliary program teaching and editing functions, with higher accuracy, and the simulation can be modified in one step. Industrial LCD has clear image and large viewing angle.
- Equipped with handheld teaching pendant. Program editing can be done manually or imported using G code. It has the functions of importing, exporting, copying board array, editing and modifying, so as to simplify the time and accuracy of program making.
- Fully closed, transparent safety door, safe operation and easy observation.
- Equipped with powerful dust collection filter and dust collector. The up-down suction method is optional and can solve the chip problem cleanly.
