15-30 Ton Hydraulic Driven Aluminum PCB Punching Machine
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTP300 |
| Minimum Order Quantity | 1 Unit |
| Price | USD15000-30000/unit |
| Packaging Details | plywood case |
| Delivery Time | 10-14 working days |
| Payment Terms | T/T |
| Supply Ability | 300 units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Customized | Cutting Method | Punching Pcb With Punching Die |
|---|---|---|---|
| Punching Way | Punching Pcb / Fpc With Punching Die | Worktable | 400 X 400 Mm(could Be Customized Made） |
| Delievery Time | 10-14 Days | Weight | 800kgs |
| Payment Term | T/T | Type | Hydraulic |
| Material | Hight Speed Steel | Control Mode | Auto,Hand,Electric |
| Separation Way | Punching | Precision | ±0.01mm |
| Warranty | 12 Months |
Product Description

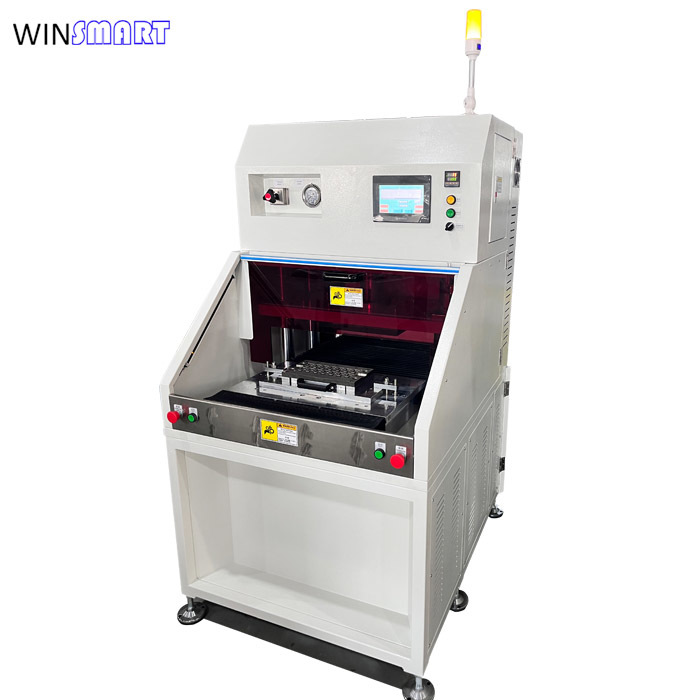

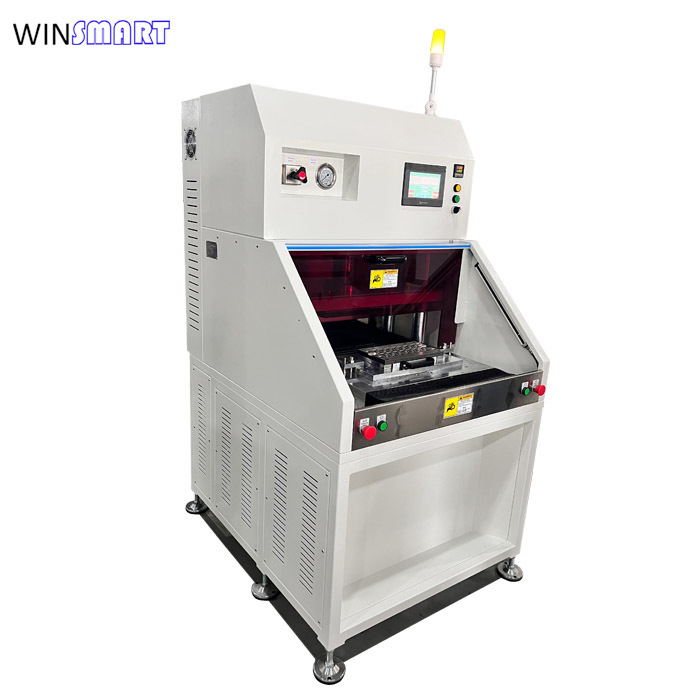

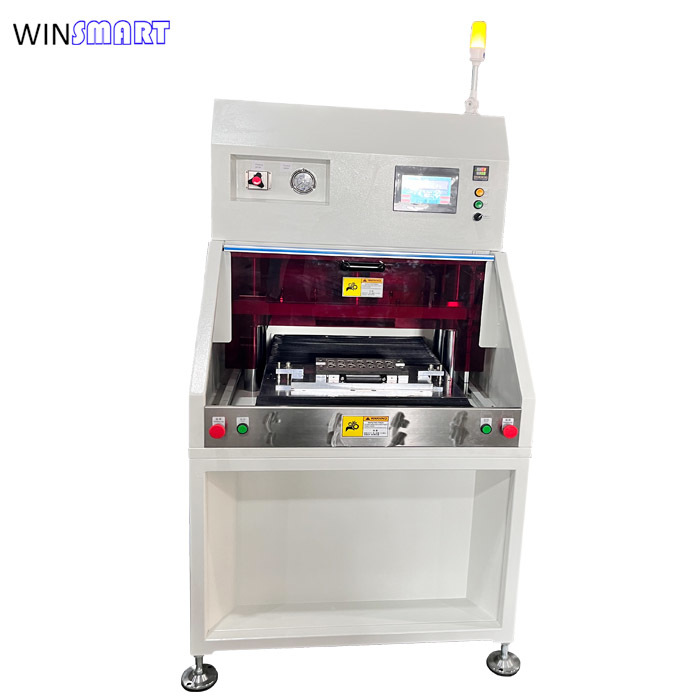

15-30 Ton Hydraulic Driven PCB Punching Machine
Hydraulic PCB Punching Machine Description:
A PCB Punching Machine is a high-speed depaneling system that uses punch-and-die toolingto separate multiple PCBs from a production panel in a single stroke. It is ideal for mass production environments requiring precision, speed, and repeatability.
Hydraulic PCB Punching Machine Functions:
It is designed for PCB/FPC which is connected by points and stamp holes, has high efficiency precision stamping and punching effect. It is only guarantee slitting FPC, PCB deformation in current market. Its minimum cutting precision is ±0.05mm for special slim PCBs. Standard working area is 400*400mm.
Hydraulic PCB Punching Machine Features:
- Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
- Die toolings is changeable
- Easy set up of punching dies
- Loading and unloading PCBs is convenient
- Easy operation, has safe protection system
- Hydraulic driven
Hydraulic PCB Punching Machine Specifications:
| Working area | 400*400mm |
|---|---|
| Output | 15/25/30 Ton |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Driven | Servo + hydraulic cylinder |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property | LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Oil | Antiwear hydraulic fluid |
| Tank capacity | 60L |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 1400x985x1750mm |
| Machine weight | 800kgs |
Hydraulic PCB Punching Machine Advantanges:
| Advantage | Benefit |
|---|---|
| High Throughput | Punches out multiple PCBs in one stroke, significantly faster than routing or manual cutting. |
| Precision and Consistency | Ensures uniformity in board shape and edge quality across large volumes. |
| Minimal Board Stress | Clean, non-bending separation reduces risk of microcracks or component damage. |
| Repeatability | Die-based tooling ensures identical cuts every time, ideal for long production runs. |
| Low Maintenance | Fewer moving parts than CNC routers; robust for continuous operation. |
| Customizable Tooling | Punch dies can be tailored for different board shapes, layouts, and panel designs. |
| Operator-Friendly | Simple loading and operation process with minimal training required. |
| No Dust Generation | Unlike routing, there is no cutting debris—reduces need for dust extraction and cleaning.Pneumatic |
Hydraulic PCB Punching Machine Applications:
