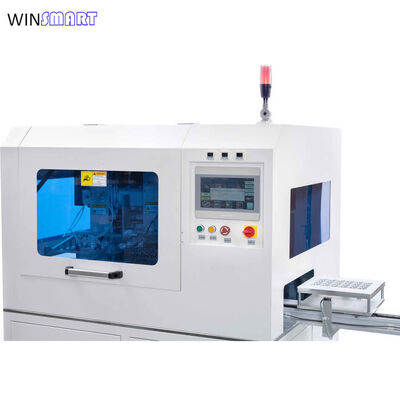

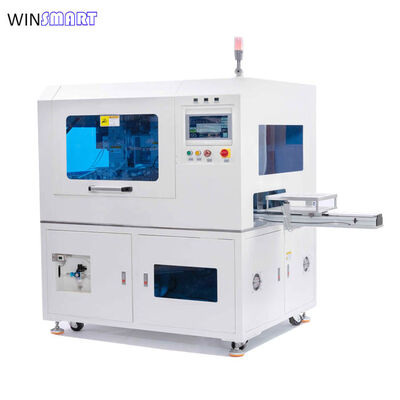

Inline Universal PCB Separator with Dual Spindle for Both Tab and V-cut Boards

  • Inline Universal PCB Separator with Dual Spindle for Both Tab and V-cut Boards
  • Inline Universal PCB Separator with Dual Spindle for Both Tab and V-cut Boards
  • Inline Universal PCB Separator with Dual Spindle for Both Tab and V-cut Boards
Place of Origin China
Brand Name Winsmart
Certification CE
Model Number SMTID3
Minimum Order Quantity 1 Unit
Price USD30000-70000/unit
Packaging Details plywood case
Delivery Time 10-20 working days
Payment Terms T/T
Supply Ability 300 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Adjustable Cutting Width Yes, Adjustable To Different PCB Sizes Cutting Thickness Up To 3mm PCB Thickness
Application Used In Electronics Manufacturing And Prototyping Weight Approximately 1200 Kg
Portability Lightweight And Portable Design Material High-quality Steel And Aluminum Alloy
Safety Features Blade Guard And Locking Mechanism Warranty 1 Year Manufacturer Warranty
Cutting Length Maximum 350mm Blade Type Routing Bit And Saw Blade
Function Separates Printed Circuit Boards (PCBs) From Panels
Leave a Message
Product Description
Inline Universal PCB Separator with Dual Spindle for Both Tab and V-cut Boards
Inline Universal PCB Separator Description:

This machine is an on-line full-automatic equipment, which can be connected to PCB loader machine. It adopts the high-speed rotation of the saw blade and automatic cutting according to the programs. The equipment is designed on-line, which can automatically locate, cut and vacuum, with high production efficiency and stable quality. Windows7 operating system, visual programming program, mark point automatic correction system, high pixel camera to display the cutting path.

Inline Universal PCB Separator with Dual Spindle for Both Tab and V-cut Boards 0
Inline Universal PCB Separator Features:
  1. Twin high-speed spindles (typically up to 60,000 RPM).
  2. Can operate simultaneously for parallel processing or redundantly for increased uptime.
  3. Reduces cycle time and boosts throughput.
  4. Fully compatible with SMEMA or SECS/GEM standards.
  5. Automatically loads and unloads PCBs from upstream and downstream conveyors.
  6. Handles V-cut, tab-routed, or irregularly shaped PCBs.
  7. Supports customized routing paths using vision-guided fiducial recognition.
  8. High-resolution camera for automatic fiducial detection.
  9. Real-time image correction to ensure accurate cutting positions.
  10. Touchscreen HMI for easy job setup.
  11. Supports offline programming, Gerber import, and barcode-based job loading.
  12. Optional MES integration for traceability and quality control.
  13. Vacuum system for effective dust and debris removal.
  14. Keeps the machine clean and reduces contamination risk.
  15. Monitors spindle tool wear and usage.
Inline Universal PCB Separator Specifications:
ModelSMTID3
Working area350x250mm(standard)
SpindleChina brand
Screw rod, guide rail, moduleChina brand
Servo motorPanasonic
Electrostatic eliminatorADK-801ADK-801
PCIndustrial grade
Monitor17 inch
Operation systemWindows 10
Spindle speed60000RPM
XYZ drive speedXY 800mm/s, Z 300mm/s
Cutting speed0-100mm/s
Cutting accuracy±0.05mm
Overall power5KW
Working platformRotating tray can cut in two directions
Spindle cooling systemAir
Vacuum cleaner power3.5KW, 380V, 3-phase
Air pressure0.5-0.75MPa
Noise control<80db
Safety deviceSafety door and sensor
Operation modeInline
PCB loadingAdjustable feeding conveyor
Automatic fault detection and maintenance modeSelf diagnosis function, real-time error information display and intuitively query the status of each IO for troubleshooting
Technical support and trainingProvide equipment operation, programming, hardware maintenance and training services
Vision systemCCD visual positioning correction system
Adjustable height50-70mm
Warning lightTricolor lamp
Dimension2250(L)x1500(W)x1850(H)mm
Weight1200kgs
Inline Universal PCB Separator Software Specifications:
Software rights managementPassword protection
ProgrammingVisual interface, cutting path, dynamic simulation
Automatic calibration functionMark point calibration
Programming modeOnline
Editing functionStraight line
Program storageSelect the storage location as needed
Tool diameter compensationVarious compensation methods are available
Tool detectionYes, auto alarms and stops after tool breaking
CountingYes
Motor overheating detectionHas overload, overheating, low voltage and other protection
Spindle life trackingAutomatic
Servo overload detectionOverload, low voltage and whether the line is normal
Machine error recordAutomatically memorizes all alarm records
Axis position accuracy0.01mm
Cutting precision±0.05mm
Barcode scanningOptional
Inline Universal PCB Separator Applications:
  • Consumer Electronics
    • Smartphones, tablets, smartwatches, and wearable devices.
    • High-speed depaneling of small, high-density PCBs with minimal stress.
  •  Automotive Electronics
    • ECUs, lighting control modules, ADAS systems, and infotainment boards.
    • Requires high-reliability cutting with clean edges and no stress cracks.
  •  Medical Devices
    • Wearable health monitors, diagnostic PCBs, and embedded controller boards.
    • Precision depaneling for boards with sensitive components.
  •  LED Lighting Boards
    • Separates large or complex LED panels, strips, and modules.
    • Inline routing supports mass production of lighting modules.
  •  Industrial & IoT Devices
    • Industrial controller boards, PLCs, and sensor modules.
    • Handles a wide range of board thicknesses and shapes with minimal operator involvement.
  •  Telecommunications
    • Routers, modems, and base station PCBs.
    • High-speed inline depaneling for mid-to-large-size communication boards.
Inline Universal PCB Separator Advantages:
BenefitExplanation
High ThroughputDual spindles and inline automation enable rapid, continuous production.
Precision CuttingVision-guided routing ensures accurate and burr-free cuts.
Stress-Free DepanelingIdeal for delicate or high-density boards with mounted components.
Flexible Board HandlingSupports various board shapes, sizes, and routing paths.
Reduced DowntimeRedundant spindles and automated tool change enhance uptime.
Smart IntegrationEasily connects to MES systems and upstream/downstream equipment.
