330mm Pneumatic PCB Separator Machine Guillotine PCB Cutter
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTPD2 |
| Minimum Order Quantity | 1 Unit |
| Price | USD2000-8000/Unit |
| Packaging Details | plywood case |
| Delivery Time | 2-20 working days |
| Payment Terms | T/T |
| Supply Ability | 500 units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Quantity Of Blades | 2 | Cutting Method | V-cut Separation |
|---|---|---|---|
| Material Compatibility | FR4, CEM-1, CEM-3, Aluminum PCB | Maximum Pcb Thickness | 3.5 Mm |
| Type | PCB Separator | Blades Type | Linear Blades |
| Driving | Penumatic | Color | White |
Product Description

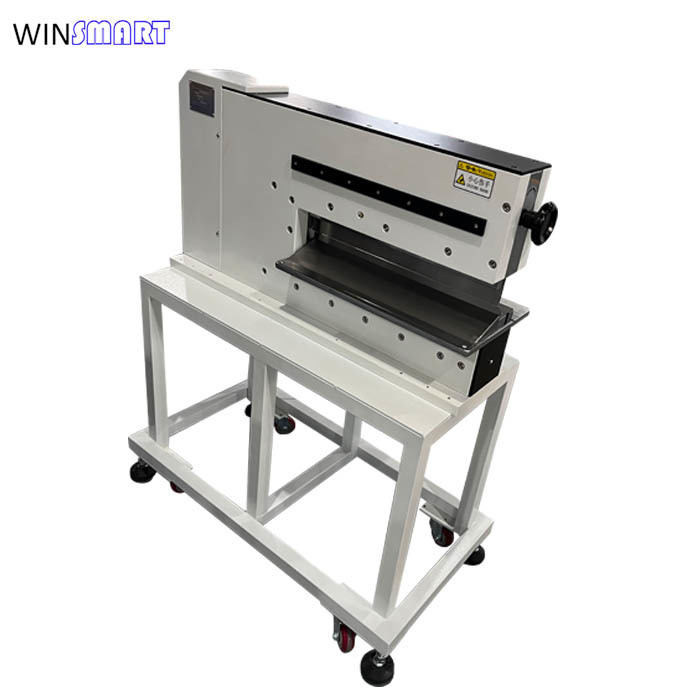

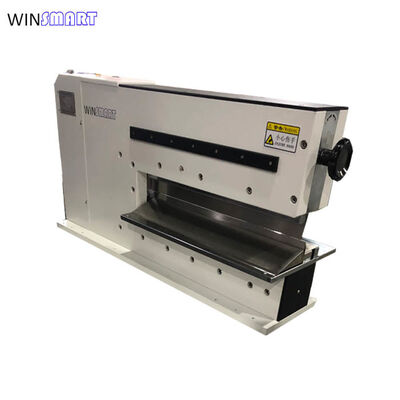

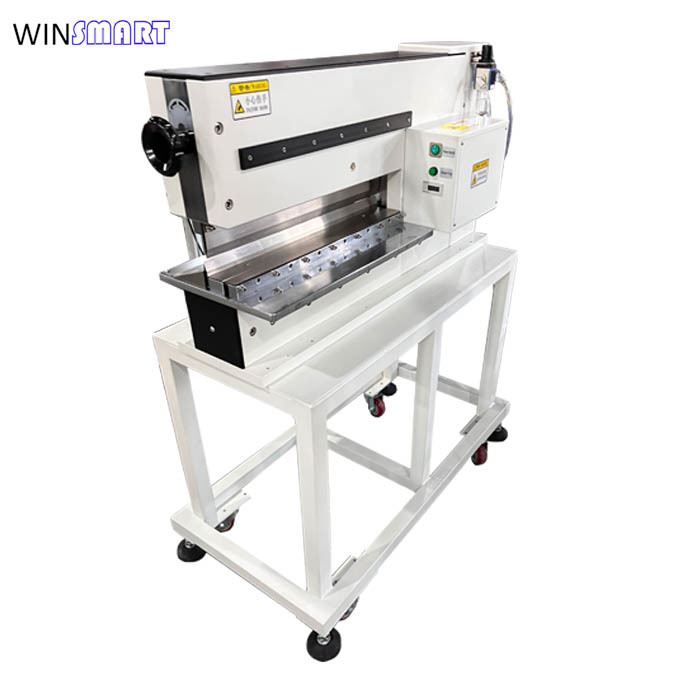

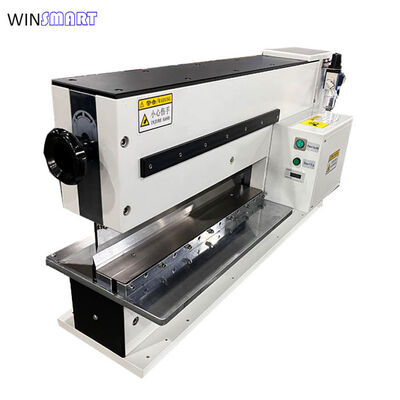

330mm Pneumatic PCB Separator Machine Guillotine PCB Cutter
Pneumatic PCB Separator Description:
The pneumatic PCB Separator is a semi-automatic machine that uses compressed air-driven mechanisms to separate individual PCBs from a panel. It uses two horizontal knives to separate without stress and will not damage parts as close as 0.5mm from the score line-and the operator cannot misfeed the board.
Pneumatic PCB Separator Features:
1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2. boring work, suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4. cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5. Blades can be re-sharpened
6. Cutting stress is less than 500 uE.
Pneumatic PCB Separator Specifications:
| Model | SMTPD2-330 |
| Max cutting length | 330mm |
| Driven mode | Air |
| PCB material | FR1, FR4, CEM1, CEM3, MCPCB |
| Air pressure | 0.4-0.7MPa |
| PCB thickness | 0.3-3.5mm |
| Power supply | 110V/220V |
| Machine weight | 130kgs |
| Blade type | Linear |
Pneumatic PCB Separator Applications:
Consumer Electronics
• Used for depaneling PCBs in products like smartphones, remote controls, wearables, and cameras.
• Ensures consistent cutting along V-grooves without damaging surface-mounted components.
Automotive Electronics
• Separates small to medium-sized PCBs used in dashboards, sensors, and lighting systems.
• Ideal for low to mid-volume production with high reliability requirements.
LED Lighting Boards
• Commonly used for separating linear or strip-type PCBs used in LED lights and displays.
• Pneumatic force ensures smooth and accurate cuts along the V-cut grooves.
Home Appliances
• Depanels PCBs used in washing machines, microwave ovens, air conditioners, and smart home devices.
• Provides a safe and efficient way to separate large batches of identical boards.
Medical Electronics
• Suitable for small-scale production of medical device PCBs with moderate complexity.
• Ensures clean separation without mechanical stress, which is critical for sensitive applications.
Industrial Controls & IoT Devices
• Used for compact PCBs in industrial monitoring, automation modules, and IoT sensors.
• Offers quick setup and high repeatability for small production runs.
