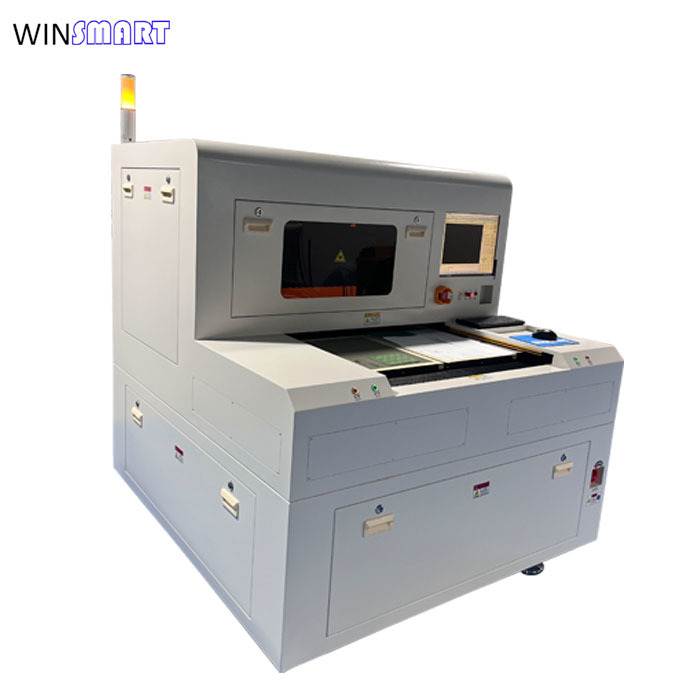

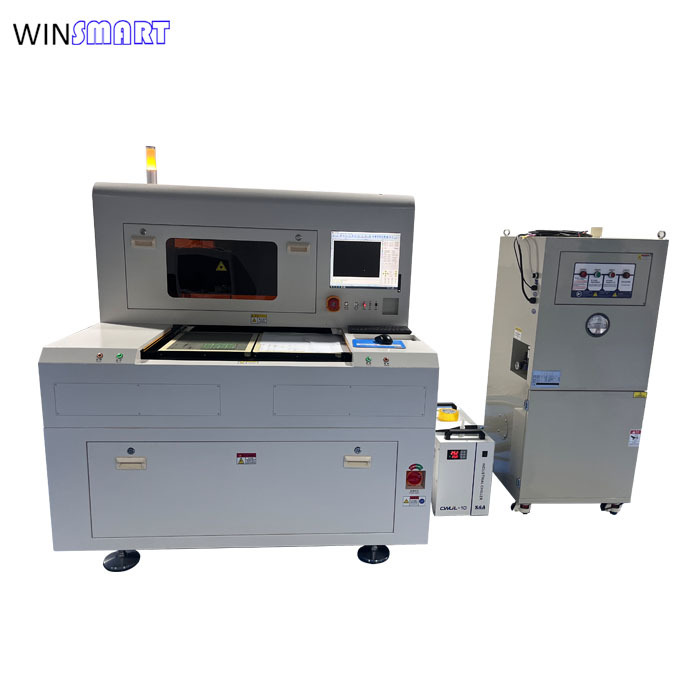

Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine

  • Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
  • Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
  • Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Place of Origin China
Brand Name Winsmart
Certification CE
Model Number SMTL350
Minimum Order Quantity 1 Unit
Price USD50000-70000/unit
Packaging Details plywood casee
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 200 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Separate Thickness 0.6-3.5mm Guarrantee One Year
Max Pcb 350*350mm(standard) Panel V-cut And Tab Boards
Pcb Type FR4, FPC Productname PCB Separator Machine
Accuracy ±0.01mm Automationlevel Semi-automatic Or Fully Automatic Options
Pcb Thickness 0.5~3mm Laser Scanning Speed 2500mm/s (max)
Power 110/220V
Leave a Message
Product Description
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
UV Laser PCB Depaneling Machine Description:

It can cut various types of PCB circuit boards with V-CUT and stamp holes, and divide the encapsulated circuit boards and ordinary optical boards. It is suitable for laser cutting and depaneling PCB circuit boards made of soft and hard combination boards, FR4, PCB, FPC, fingerprint identification module, covering film, composite materials, copper substrate and other materials.

Neat and smooth edge, no burr or overflow Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine 0

UV Laser PCB Depaneling Machine Features:
  1. More quick and easy, shorten the delivery time.
  2. High quality, no distortion, surface clean& uniformity.
  3. Gathering the CNC tech, laser tech, software tech…
  4. High accuracy, High speed.
UV Laser PCB Depaneling Machine Specifications:
Model SMTL350
Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Source Optowave UV 10W/12W/15W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 300mmx300mm(Dual table)
Laser Scanning Speed 3000mm/s (max)
Galvanometer Working Field Per One Process 50mmх50mm
UV Laser PCB Depaneling Machine Applications:

FPC and some relative materials.

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine 1 Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine 2 Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine 3

UV Laser PCB Depaneling Machine Principle:

The principle of PCB laser depaneling machine is to irradiate the surface of PCB circuit board with high-energy beam, and realize the vaporization cutting of PCB materials by controlling the parameters such as beam energy density, frequency, speed and processing times.
