Offline Single Table Universal PCB Separator with Dual Spindles

  • Offline Single Table Universal PCB Separator with Dual Spindles
Place of Origin China
Brand Name Winsmart
Certification CE
Model Number SMTIDX1
Minimum Order Quantity 1 Unit
Price USD10000-30000/unit
Packaging Details plywood case
Delivery Time 10-20 working days
Payment Terms T/T
Supply Ability 300 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutting Thickness Up To 3mm PCB Thickness Application Used In Electronics Manufacturing And Prototyping
Weight Approximately 700 Kg Portability Lightweight And Portable Design
Material High-quality Steel And Aluminum Alloy Safety Features Blade Guard And Locking Mechanism
Warranty 1 Year Manufacturer Warranty Working Area 400x400mm
Blade Type Routing Bit And Saw Blade Function Separates Printed Circuit Boards (PCBs) From Panels
Leave a Message
Product Description
Offline Single Table Universal PCB Separator with Dual Spindles
Offline Single Table Universal PCB Separator Description:

This machine is designed for the panel with both V-cut and milling bridges connection. It comes with dual tables and dual spindles, one spindle for V-cut boards, another spindle for tab boards. It is widely used in electronics manufacturing, automotive, medical devices, LED lighting, and telecommunications. It prevents cracks, delamination, and micro-damage, making it ideal for high-reliability electronics.

Offline Single Table Universal PCB Separator Main Part Description:

1. The brushless motor drives the saw blade, with suction and ion air to reduce dust adsorption during the cutting process. Servo controlled Z-axis lifting, accurate control of PCB height.

2. High speed SycoTec spindle, fast cutting, equipped with vacuum cleaner and cutter breakage detection to prevent further cutting and scrap after knife breakage. Servo controlled Z-axis lifting, accurate control of PCB height.

3. Customized aluminum alloy fixture, oxidation treatment, anti-static, ensuring cutting accuracy.

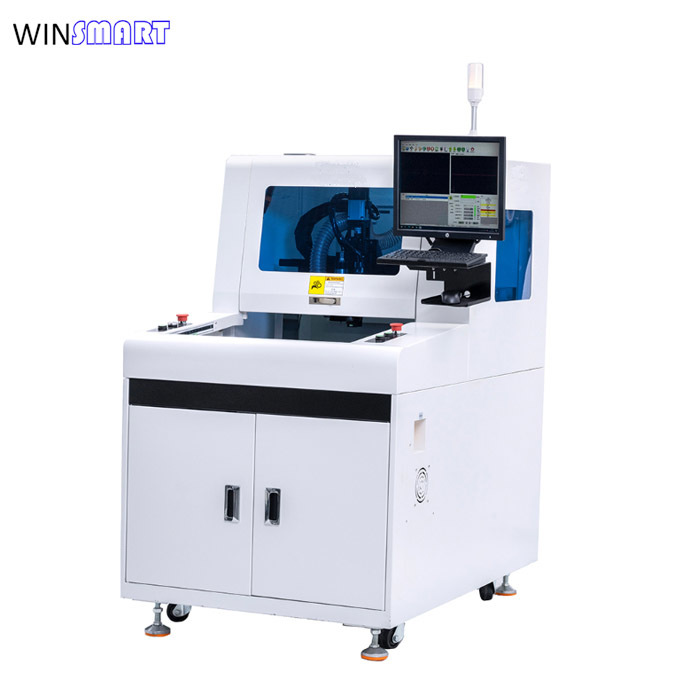

Offline Single Table Universal PCB Separator with Dual Spindles 0
Offline Single Table Universal PCB Separator Features:

Stress-free, less than 200MIC

CCD vision positioning and mark point correction system.

Smooth cutting effect, easy operation, dust free.

Suitable for all rigid PCB board for both V-cut and milling joints cutting.

Offline Single Table Universal PCB Separator Specifications:
Model SMTIDX1
Working area 400x400mm(standard)
Spindle China brand
Screw rod, guide rail, module China brand
Servo motor Panasonic
Electrostatic eliminator ADK-801ADK-801
PC Industrial grade
Monitor 17 inch
Operation system Windows 10
Spindle speed 60000RPM
XYZ drive speed XY 800mm/s, Z 300mm/s
Cutting speed 0-100mm/s
Cutting accuracy ±0.05mm
Overall power 5KW
Working platform Rotating tray can cut in two directions
Spindle cooling system Air
Vacuum cleaner power 3.5KW, 380V, 3-phase
Air pressure 0.5-0.75MPa
Noise control <80db
Safety device Safety door and sensor
Programming Can import dxf file for easier programming
PCB loading Manual
Automatic fault detection and maintenance mode Self diagnosis function, real-time error information display and intuitively query the status of each IO for troubleshooting
Technical support and training Provide equipment operation, programming, hardware maintenance and training services
Vision system CCD visual positioning correction system
Dimension 900(L)x1375(W)x1540(H)
Weight 700kgs
Offline Single Table Universal PCB Separator Advantanges:
  • Compatible with V-cut, tab-routed, and irregularly shaped PCBs.
  • Suitable for FR4, aluminum, or flex-rigid boards.
  • Can handle a wide range of sizes and layouts without reconfiguring production lines.
  • Lower initial investment and operating cost compared to inline systems.
  • Ideal for small batch production, pre-production runs, or R&D environments.
  • Equipped with vision alignment systems and CNC-controlled routing.
  • Ensures burr-free, clean-edge cutting with minimal mechanical stress.
  • Maintains high-quality output even on densely populated boards.
  • User-friendly touchscreen interface for job setup, adjustment, and operation.
  • Offline programming allows operators to create and optimize cutting paths without machine downtime.
  • Operates independently from the SMT line or other production equipment.
  • Can be placed anywhere in the facility for flexible deployment.
  • Avoids bottlenecks in the main production flow.
  • Equipped with protective covers, safety interlocks, and dust extraction systems.
  • Reduces operator fatigue compared to manual depaneling or V-cut breaking.
  • Quick jig/tool change and barcode-based job loading (optional).
  • Perfect for high-mix PCB manufacturing where frequent product changeover is needed.
  • Optional integration with barcode scanners and MES systems for offline traceability.
  • Logs cutting paths, spindle runtime, and production history for each board.
