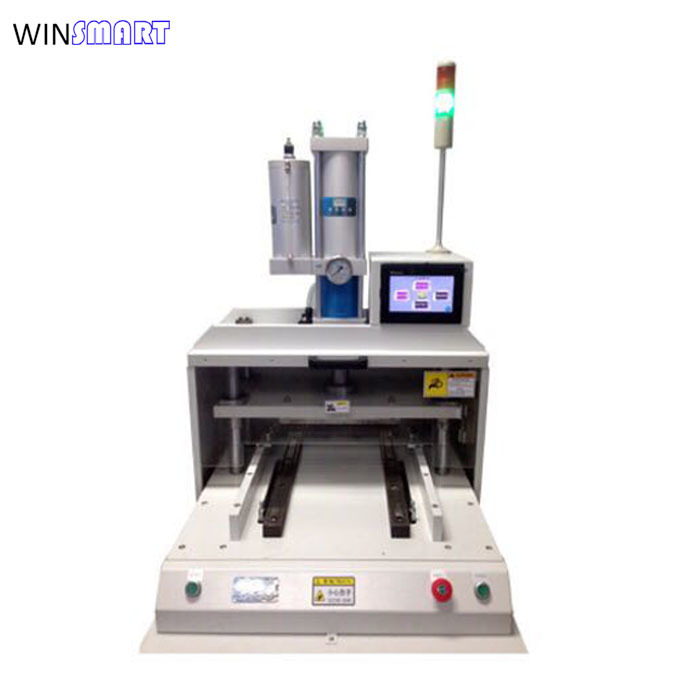

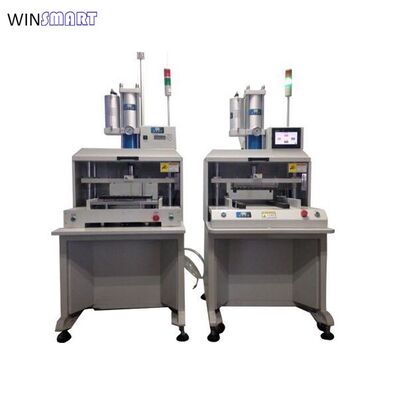

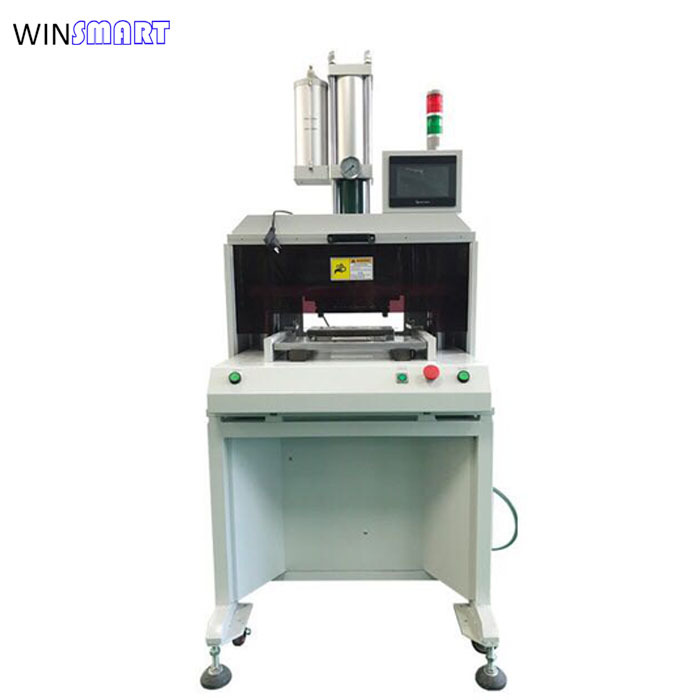

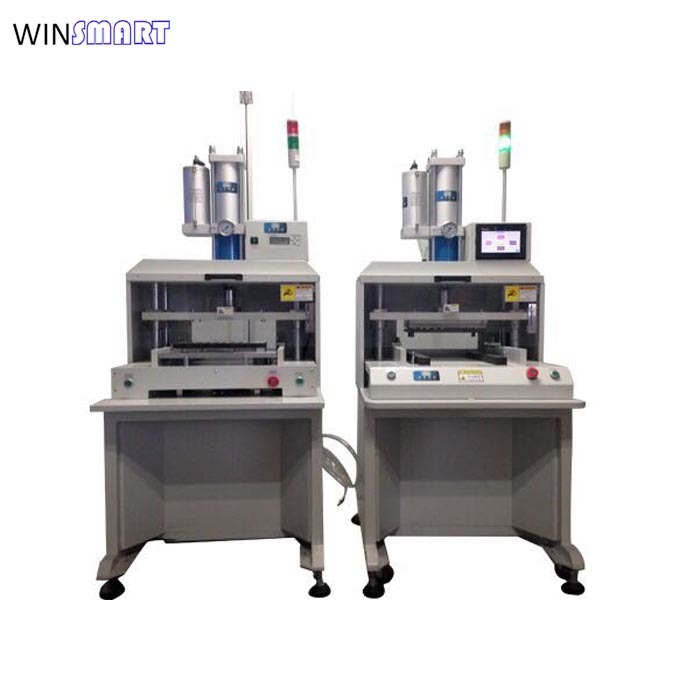

8-15 Ton Air Driven Pneumatic PCB Punching Machine

  • 8-15 Ton Air Driven Pneumatic PCB Punching Machine
  • 8-15 Ton Air Driven Pneumatic PCB Punching Machine
  • 8-15 Ton Air Driven Pneumatic PCB Punching Machine
  • 8-15 Ton Air Driven Pneumatic PCB Punching Machine
Place of Origin China
Brand Name Winsmart
Certification CE
Model Number SMTP300
Minimum Order Quantity 1 Unit
Price USD7000-15000/unit
Packaging Details plywood case
Delivery Time 10-14 working days
Payment Terms T/T
Supply Ability 300 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Customized Cutting Method Punching Pcb With Punching Die
Punching Way Punching Pcb / Fpc With Punching Die Worktable 460 X 300 Mm
Delievery Time 10-14 Days Power Source Pneumatic
Weight 650kgs Payment Term T/T
Type Pneumatic Material Hight Speed Steel
Control Mode Auto,Hand,Electric Separation Way Punching
Precision ±0.01mm Warranty 12 Months
Leave a Message
Product Description
8-15 Ton Air Driven Pneumatic PCB Punching Machine
Pneumatic PCB Punching Machine Description:

A PCB Punching Machine is a high-speed depaneling system that uses punch-and-die toolingto separate multiple PCBs from a production panel in a single stroke. It is ideal for mass production environments requiring precision, speed, and repeatability.

Pneumatic PCB Punching Machine Functions:

It is designed for PCB/FPC which is connected by points and stamp holes, has high efficiency precision stamping and punching effect. It is only guarantee slitting FPC, PCB deformation in current market. Its minimum cutting precision is ±0.05mm for special slim PCBs. Max working area is 460*300mm.

Pneumatic PCB Punching Machine Features:
  1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
  2. Die toolings is changeable
  3. Easy set up of punching dies
  4. Loading and unloading PCBs is convenient
  5. Easy operation, has safe protection system
  6. Air cylinder driven
Pneumatic PCB Punching Machine Specifications:
Working area 460*300mm
Working pressure 0.45-0.7Mpa
Cutting precision ±0.05mm
Cycle time 7-15 seconds
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property LCD display, Automatically records the number of processed products, automatic punching
Transmission port International standard
Operation Language English
Stroke 50MM
Mold height 170MM
Power 380/220V
Fuse 3A
Machine dimension 820x740x1750mm
Machine weight 580kgs
PCB Punching Machine Advantanges:
Advantage Benefit
High Throughput Punches out multiple PCBs in one stroke, significantly faster than routing or manual cutting.
Precision and Consistency Ensures uniformity in board shape and edge quality across large volumes.
Minimal Board Stress Clean, non-bending separation reduces risk of microcracks or component damage.
Repeatability Die-based tooling ensures identical cuts every time, ideal for long production runs.
Low Maintenance Fewer moving parts than CNC routers; robust for continuous operation.
Customizable Tooling Punch dies can be tailored for different board shapes, layouts, and panel designs.
Operator-Friendly Simple loading and operation process with minimal training required.
No Dust Generation Unlike routing, there is no cutting debris—reduces need for dust extraction and cleaning.Pneumatic
Pneumatic PCB Punching Machine Applications:
  • Single-design, high-volume production
  • Low-mix, high-repeatability manufacturing
  • Applications where edge quality and speed are essential

8-15 Ton Air Driven Pneumatic PCB Punching Machine 0 8-15 Ton Air Driven Pneumatic PCB Punching Machine 1
