330mm Pizza Cutter Manual V-cut PCB Separator Machine
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTMD2 |
| Minimum Order Quantity | 1 EA |
| Price | USD1000-5000/EA |
| Packaging Details | plywood case |
| Delivery Time | 2-3 working days |
| Payment Terms | T/T |
| Supply Ability | 500 EA per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Advantage | Economic | Driving | Manual |
|---|---|---|---|
| Blade Lifetime | 7-8 Months | Blades Material | Japan High Speed Steel |
| Bladelength | 330mm | Minimize Thickness | 0.3-2.0mm |
| Application | V-cut FR4 And MCPCB Boards Cutting | Name | Manual PCB Separator |
Product Description

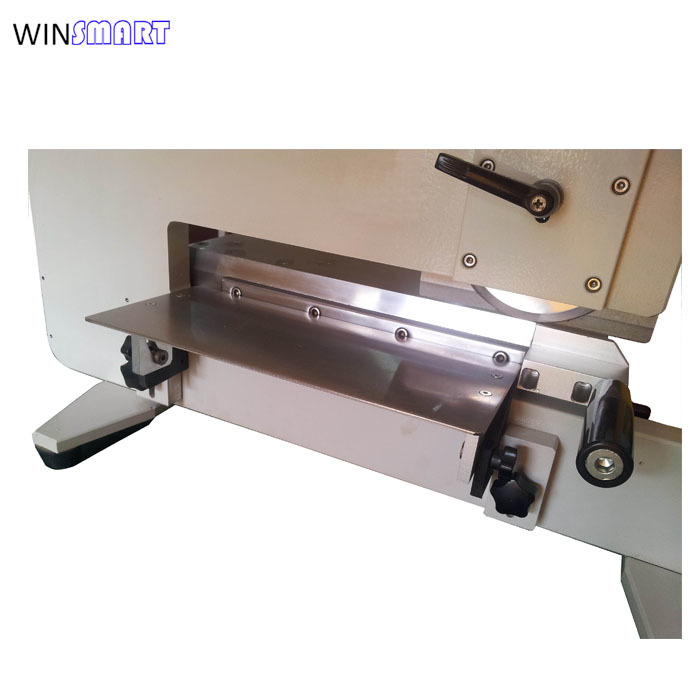

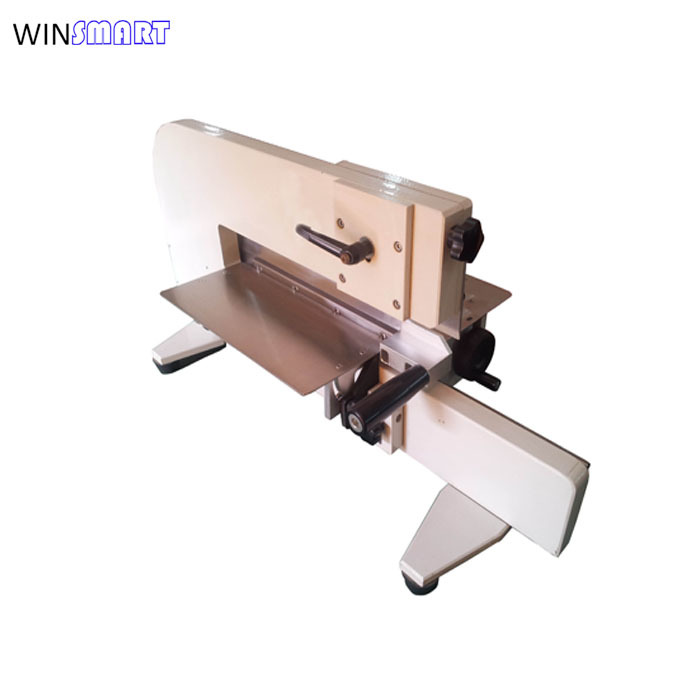

330mm Pizza Cutter Manual V-cut PCB Separator Machine
Manual PCB Separator Description:
This type of PCB separator is nicknamed a “pizza cutter” due to its circular blade that rolls through the V-groove, much like a pizza cutter slicing dough. It is a manual PCB depaneling tool designed for V-scored PCBs (i.e., PCBs with pre-cut V grooves).
Manual PCB Separator Features:
- Simple operation, speed is fast, to ensure that components of substrate are not injured by the movement.
- Linear blade slip speed can be manually controlled, the v-groove guiding device can be adjusted to the height, and can be more quickly adapted to substrate of different thickness.
- Reduce internal stress generated by the cutting board and avoid in cracking.
- Round blade can be used repeatedly after grinding.
- Support maxt 330mm long boards.
- Provides a smooth, burr-free finish while minimizing stress on the boards.
- The bottom blade helps to guide the PCB for consistent and straight cuts.
Manual PCB Separator Specifications:
| Model | SMTMD2 |
| Machine dimension | 800x260x350mm |
| Max cutting length | 330mm |
| PCB material | FR1, FR4 |
| Cutting speed | Manual control |
| PCB thickness | 0.6-2.0mm |
| Power supply | No required |
| Machine weight | 40kgs |
| Wooden case dimension | 85x50x50cm |
| Gross weight | 65kgs |
Manual PCB Separator Applications:
It is widely used in a lot of industries: LED Lighting, Consumer Electronics, Automotive Modules, etc.
The 330mm Pizza Cutter Manual V-Cut PCB Separator is a reliable, budget-friendly tool for separating V-scored PCBs with minimal stress and a clean finish. It’s best suited for manual assembly lines, prototype labs, and low-volume production environments that prioritize precision and simplicity.
