Dual Table Inline PCB Depaneling Router For High Productivity
| Place of Origin | China |
|---|---|
| Brand Name | Winsmart |
| Certification | CE |
| Model Number | SMTIRX |
| Minimum Order Quantity | 1 Unit |
| Price | USD50000-80000/unit |
| Packaging Details | plywood case |
| Delivery Time | 14-20 working days |
| Payment Terms | T/T |
| Supply Ability | 500 units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Change Cutter | Manual | Vacuum | Yes |
|---|---|---|---|
| Spindle Quantity | 1 | Max Pcb | 350x350mm(Single Table) |
| Coolingsystem | Air | Routing Bit | Dia 0.8-3.0mm |
| Separating Speed | 1-100mm/s | Cutting Width | 2-6mm |
| Condition | New | Feeding | Auto |
| Weight | 800 Kg |
Product Description

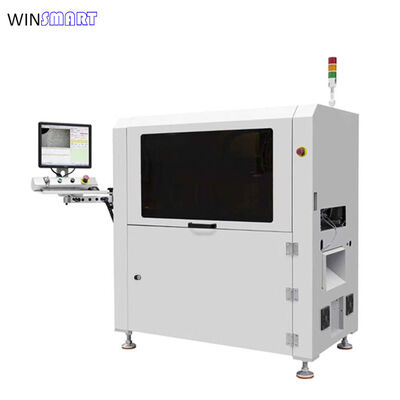

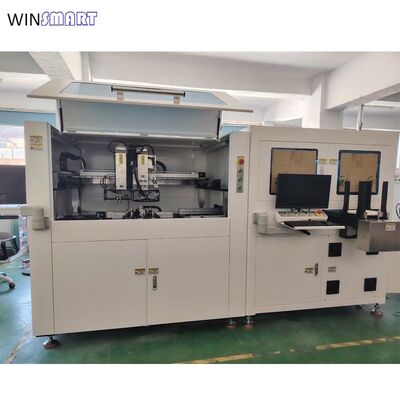

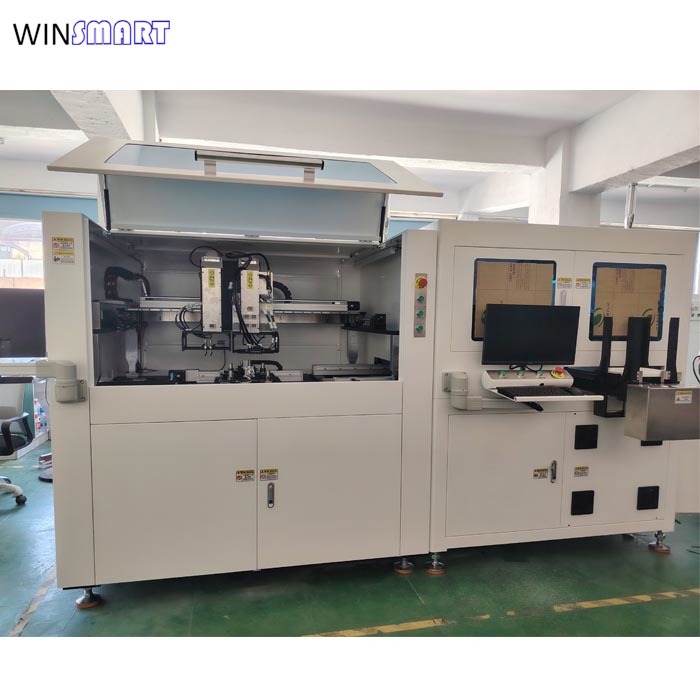

Dual Table Inline PCB Depaneling Router For High Productivity
Dual Table Inline PCB Depaneling Router Introduction:
It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting. This inline router system, with loader and unloader for ATE test line, high speed spindle, low stress to separate PCBA and ensure prevision and cleanliness, high volume production helper.
Dual Table Inline PCB Depaneling Router Features:
- Cutting path full closed loop, real-time error tracking, feedback, compensation.
- Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
- China's first laser height measurement function, simple operation and higher safety performance.
- Uses bottom vacuum cleaning system, with better vacuuming effect.
- Automatically identify barcodes and retrieve cutting programs.
- Has tool detection function.
Dual Table Inline PCB Depaneling Router Specifications:
| Model Number | SMTIRX |
|---|---|
| Machine Size | Approx 1450(L)x1100(W)x1600(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 350x350mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left -> Right or Right -> Left |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Manual |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum, 40-60 nozzles |
| Cutting Spindle | 80000rpm/min(standard) |
| Cooling Type | Self cooling |
| Automatic Tool Change | Manual |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.05mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Tool Detection | Yes |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm2 |
| Power Supply | AC 220V, 50/60Hz, 3KW |
Dual Table Inline PCB Depaneling Router Structure:
It has dual working table for continuous cutting for high volume production.
We could also design a PCBA plating machine for automatic separated PCBA collection and package.
Dual Table Inline PCB Depaneling Router Applications:
- Telecommunications Equipment
- Automotive Electronics
- Consumer Electronics (Phones, Wearables, etc.)
- LED Lighting Modules
- Industrial Control Boards
- Medical Devices
- IoT Modules and Smart Home Devices
The Dual Table Inline PCB Depaneling Router is a high-efficiency, high-precision solution for depaneling complex and sensitive PCBs in modern electronics manufacturing. Its dual-table design ensures uninterrupted operation, making it ideal for high-volume, automated SMT production lines.
