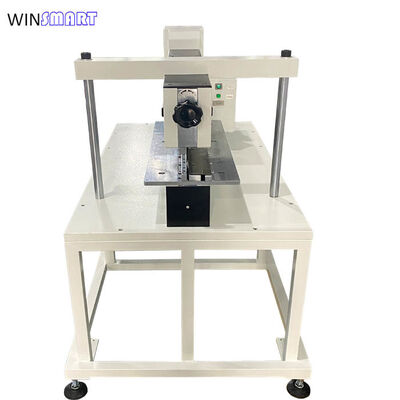

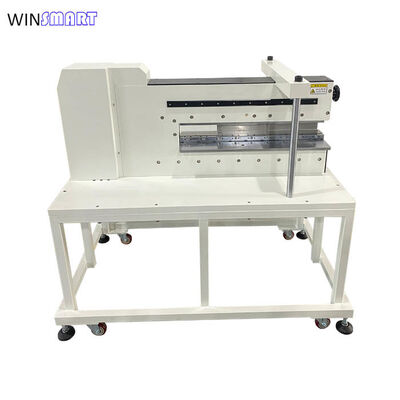

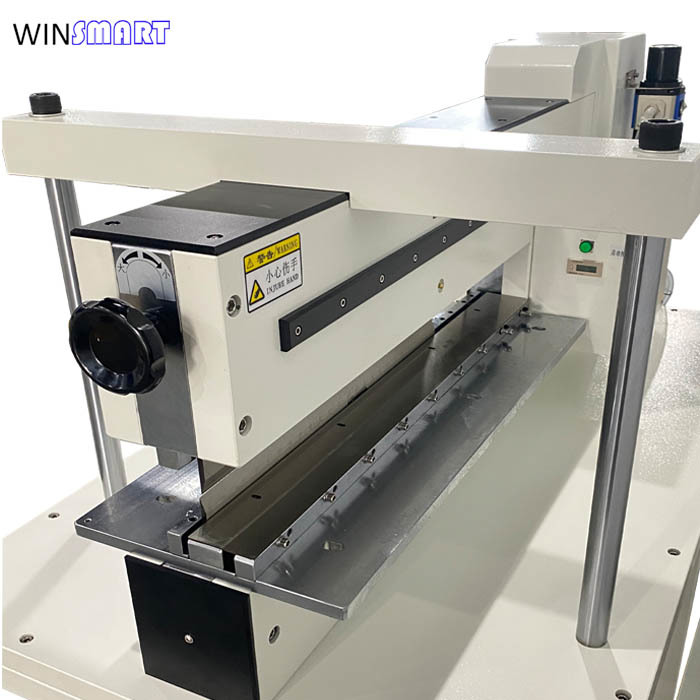

500mm Metal Core PCB Depanelizer Machine Guillotine PCB Cutter

A Metal Core PCB Depanelizer is a specialized machine used to separate individual printed circuit boards (PCBs) from a larger panel, specifically designed for Metal Core PCBs (MCPCBs). These PCBs typically have a metal base (usually aluminum or copper) for improved heat dissipation, making them more rigid and thermally conductive than traditional FR4 boards. Due to their robustness, MCPCBs require precise and powerful depanelization methods.

• High Precision Cutting

  • Utilizes blades, routers, lasers, or saws for accurate depaneling with minimal stress on components.

• Rigid Material Handling

  • Designed to handle the rigidity and thermal conductivity of metal core materials.

• Stress-Free Separation

  • Applies minimal mechanical stress to prevent cracking or delamination of the PCB.

• Customizable Fixtures

  • Supports fixtures to hold odd-shaped or sensitive MCPCBs securely during cutting.

• Dust and Burr Control

  • Equipped with systems to reduce or eliminate metal burrs and dust, which are critical for electronics.

• Automated Operation

  • Many depanelizers come with auto-feed, programmable paths, and touch-screen interfaces for high-volume production.

• Cooling System Integration

  • Some models feature cooling systems to manage heat generated during depaneling.

Precision & Accuracy: Ensures clean edges and consistent size, which is critical for downstream assembly.
Reduced PCB Stress: Protects components and traces from mechanical damage during depaneling.
High Throughput: Speeds up production with automated and batch processing capabilities.
Compatibility with Tough Materials: Can handle aluminum and copper cores without damaging the board.
Lower Reject Rate: Smooth cuts reduce waste from cracked or damaged boards.
